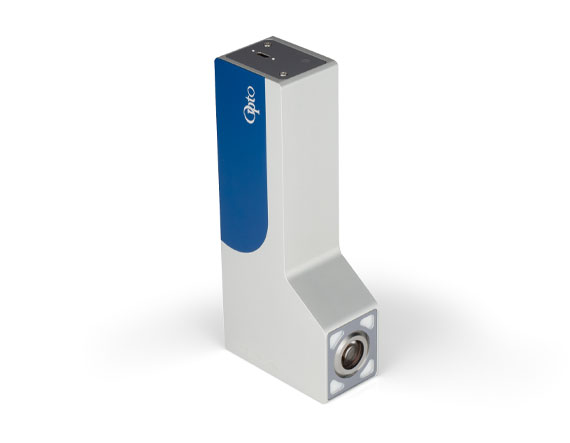

Color Opto IM Compact M Digital Microscope Module

Product Details Digital Microscope with Integrated Optics, Color or Monochrome Camera, and Illumination Plug & Play USB3.1 Interface Image Capture Software and SDK Included Calibration and Particle Targets Available Opto IM Compact M Digital Microscope Modules are a compact, easy to use, complete microscope system that includes high resolution optics, an IMX264 5MP Camera, and illumination all enclosed in an aluminum housing. With no additional objectives required, these modules are easy to set up, portable, and feature a USB 3.1 interface allowing for simple configuration without compromising on performance. These 90° angled reflected light digital microscope modules feature coaxial incident light and diffuse ring light LED illumination. Opto IM Compact M Digital Microscope Modules include the OptoViewer 2.0 software for camera and light control as well as simple measurement and documentation tasks. These digital microscope modules are ideal for quality and metrology labs, in-process inspection, and applications requiring measurement, analysis, and documentation. Note : Each unit includes a 3m USB3 cable. Optical calibration and resolution testing can be achieved with the optional Calibration Target Micro V1 with four unique quadrants that combine resolution targets with measurement scales, and the Particle Standard Target which allows the measurement and analysis through objects of different forms and sizes or of resolution in line pairs per mm. Specifications General Model Number: IC10-05O33CU3101 Type: Color Camera Type of Illumination: Coaxial + Ring Note: 3m USB 3.1 Cable Included Physical & Mechanical Properties Field of View (mm): 2.3 x 1.9 Dimensions (mm): 175 x 80 x 40 Weight (g): 700 Optical Properties Working Distance (mm): 37.00 Sensor Frame Rate (fps): 36.00 Imaging Sensor: IMX264 Resolution (Megapixels): 5.04 Pixel Depth: 8/10/12 Bit Pixels (H x V): 2,456 x 2,054 Shutter Type: Global Sensor (mm): 11.05 Hardware & Interface Connectivity Connector: USB 3.1 Gen.1, Type C Regulatory Compliance Certificate of Conformance: View ×
