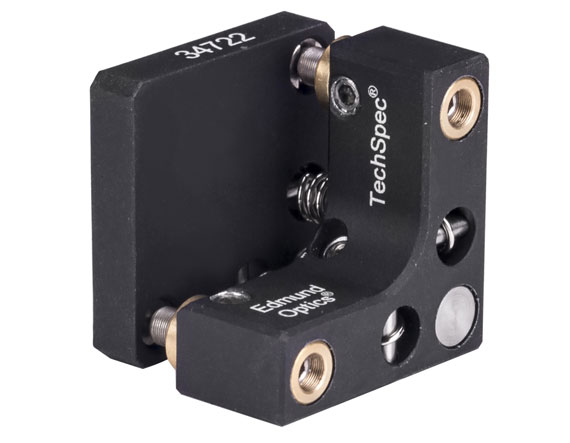

Compact Kinematic Solid Plate Mount, 2-Screws

Product Details M3 x 0.2 Fine Adjustment Screw Threads <25mm Overall Profile Lockable for Improved Stability Our TECHSPEC Compact Kinematics are designed to retain the performance of a larger kinematic for integration into space sensitive applications. These kinematics feature completely reseding adjustment screws for integration into OEM applications. TECHSPEC Compact Kinematic Mounts have two front plate models for utilization of set screw or adhesive optic securing. Stainless steel inserts are also used to ensure quality and stability. These kinematic mounts, in conjunction with our TECHSPEC Laser Mirrors , are ideal for reliable integration into laser machining, cinema or life science applications. Specifications General Type: Adjustable - Tip-Tilt Type of Optics: Square or Rectangular Number of Adjustment Screws: 2 Plate Dimensions (mm): 22.5 x 22.5 Physical & Mechanical Properties Clear Aperture CA (mm): N/A Thickness (mm): 19.60 Travel (mm): No Z-Axis Translation Construction: Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings Fine Tilt Angle (°): ±5 Fine Tip Angle (°): ±5 Adjustment Screw Pitch (mm): 0.2 Min. Thickness of Compatible Optics (mm): N/A Centerline Height (mm): 15.0 Thickness of Front Plate to Back Plate (mm): 19.6 Pointing Stability (μrad): 1.3 Threading & Mounting Size of Compatible Optics (mm): 3.00 - 25.40 Compatible Post: M4 x 0.7 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
