Corning Varioptic AF Explorer Development Kit with Sony IMX335 Sensor

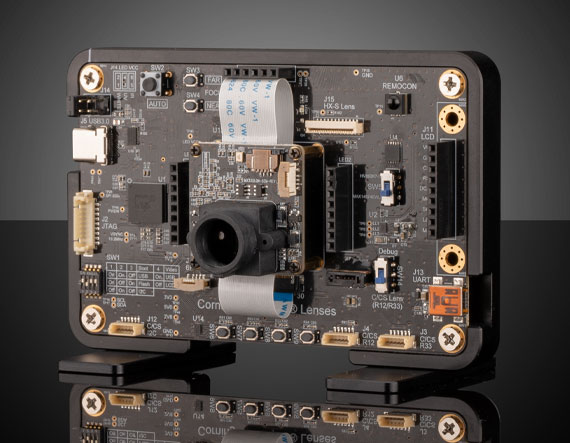

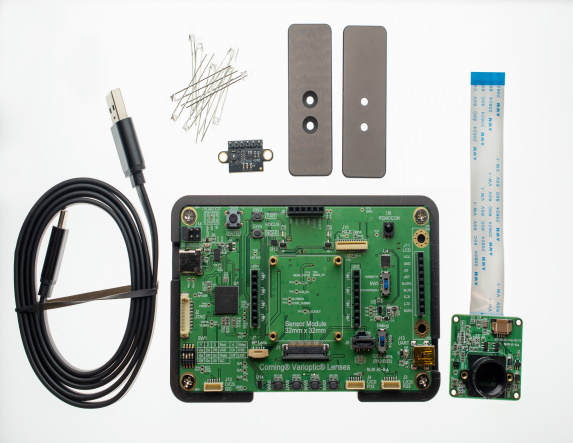

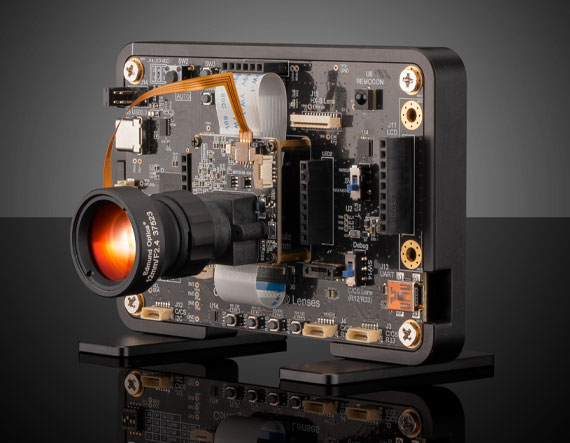

Product Details Ideal for Evaluating and Exploring Liquid Lens Technology Easily Driven via AF Lab Software over USB Plug-and-Play With TECHSPEC Liquid Lens Cx Series and M12 Lenses The Corning Varioptic AF Explorer Autofocus Board Level Camera for Liquid Lenses provides an easy-to-use evaluation platform for exploring liquid lens technology and its benefits to machine vision applications. Featuring plug-and-play compatibility with our TECHSPEC Liquid Lens Cx Series and M12 Lenses, the AF Explorer is easily driven via the included AF Explorer software for adjusting basic sensor settings, autofocus modes, autofocus algorithms, and more. The Corning Varioptic AF Explorer Autofocus Board Level Camera for Liquid Lenses is ideal for those looking to incorporate liquid lens technology into their machine vision or life science application for the first time, or as a standalone camera in production applications. Included with each AF Explorer is the main electronics board, an imaging sensor, time of flight (TOF) sensor, software, and product documentation. Note: Additional sensor boards are available for use with the AF Explorer, including the Samsung M3085 (8MP 1/3.2”), Sony IMX307 (2MP 1/2.8”), and Sony IMX219 (8MP ¼”), all optimized for use with our TECHSPEC Liquid Lens Imaging Lenses. Please contact us for more information. Specifications Spectrum: Color General Type: Color Camera Manufacturer: Corning Varioptic Contents of Kit: 1 x AF Explorer Camera Board 1 x Sony IMX335 Sensor 1 x TOF Sensor 1 x USB Type-C Cable 1 x Mounting Pedestals White LEDs AF Lab Camera Software Physical & Mechanical Properties Dimensions (mm): 110 x 70 x 5 (excludes sensor and lens mount) Weight (g): 504 Housing: Board Level Sensor Sensor Format: 1/2.8″ Resolution (Megapixels): 5.04 Frame Rate (fps): 60.00 Pixels (H x V): 2,592 x 1,944 Pixel Size, H x V (μm): 2.00 x 2.00 Sensing Area, H x V (mm): 5.18 x 3.89 Imaging Sensor: Sony IMX335 Type of Sensor: Progressive Scan CMOS Shutter Type: Rolling Pixel Depth: 10 bit Machine Vision Standard: AF Explorer Software Electrical Power Consumption (W): 1.65W – 2.60W (LED Off/On, 5MP 30fps) Hardware & Interface Connectivity Interface: USB 3.1 Gen 1 Connector: USB 3.1 Gen 1, Type-C Power Supply: Power over USB Interface Port Orientation: Back Panel (Right Angle) GPIO Connector Type: N/A Threading & Mounting Mount: C-Mount or S-Mount Mounting Threads: ¼-20 Tripod Adapter, Built-in Pedestals Environmental & Durability Factors Operating Temperature (°C): 0°C to +65°C Storage Temperature (°C): -20°C to +85°C Regulatory Compliance Certificate of Conformance: View ×
