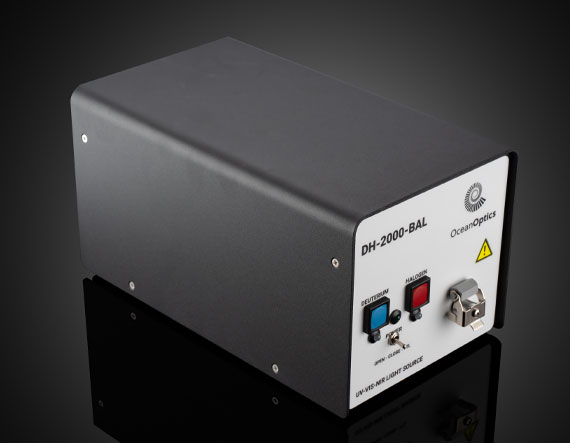

Deuterium-Tungsten Spectroscopy Illuminator

Product Details Stable, High-Quality Output Across Broad Wavelength Ranges from 185–2500 nm Deuterium-Tungsten, Xenon, Tungsten-Halogen Lamp Types Available Fully Compatible with Ocean Optics Spectrometers and Accessories Recommended Patchcords Available Here Ocean Optics Spectroscopy Illuminators offer a flexible range of UV–NIR light sources to pair with Ocean Optics spectroscopy systems. Choose from Tungsten-Halogen for stable VIS–NIR output (360–2400nm), Xenon for high-intensity, pulsed broadband UV–NIR illumination (185–2500nm), or Deuterium-Tungsten for continuous coverage from deep UV through NIR (210–2500nm). Typical applications include reflectance, transmittance, absorbance, and fluorescence measurements where reliable, well-matched illumination is essential. Ocean Optics Spectroscopy Illuminators are designed for lifetimes of up to 10,000 hours and feature SMA fiber connections. Specifications General Type: Deuterium-Tungsten Illuminator Model Number: DH-2000-BAL Note: Power supply and integrated shutter included. Operating Lifetime (hours): 1000 Type of Light Source: Deuterium & Tungsten Halogen Warm-Up Time (minutes): 25 Physical & Mechanical Properties Weight (kg): 5.5 Dimensions (cm): 15 x 13.5 x 28.5 Optical Properties Wavelength Range (nm): 210 – 2500 Light Source Stability (%): ≤0.1%/hour @ 254 nm (deuterium) ≤0.1%/hour @ 700 nm (tungsten halogen) Electrical Trigger: TTL, Up to 2.5 Hz maximum Output Power (µW): Deuterium: 194 Tungsten Halogen: 615 Power Consumption (VA): ~78 Nominal Bulb Power (W): 25 W (deuterium) 20 W (tungsten halogen) Hardware & Interface Connectivity Connector: SMA 905 Power Requirement: 85–264 V 50/60 Hz Trigger/Shutter Input Connection: SUB-D-15 pin Environmental & Durability Factors Operating Temperature (°C): 5 to 35 Operating Humidity: 5–95% without condensation at 40°C Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
