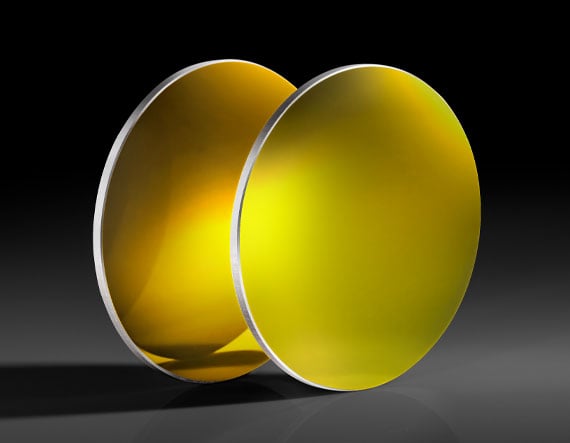

DLC Coated 8-12µm Si Window 35mm Dia 2mm T

Product Details Twice as Hard as Germanium >70% Average Transmission in 8-12μm Wavelength Range Excellent Alternative to Ge for LWIR Applications Available In Sizes Up To 76.2mm Diameter DLC Coated Silicon (Si) Windows for Thermal Imaging feature a Diamond-Like Carbon (DLC) coating on one surface of a precision Si substrate and an AR coating on the other, making them well-suited for use as protective windows in harsh environments. Conforming to both the MIL-F-48616 and MIL-C-48497C environmental standards, these windows have excellent performance in the LWIR range, with an average transmission of >70% from 8-12μm. Featuring exceptional hardness and scratch resistance DLC Coated Silicon (Si) Windows for Thermal Imaging are highly resistant to abrasion and impact, well suited for high-temperature use, and are an ideal alternative to Germanium. These windows have high thermal conductivity for heat dissipation and a maximum safe operating temperature of 200°C. Common applications for these windows include thermography, medical imaging, surveillance, furnace inspection, and process control. Specifications General Type: Protective Window Note: Arrow on side of window points to DLC-Coated surface Physical & Mechanical Properties Diameter (mm): 35.00 ±0.20 Thickness (mm): 2.00 ±0.20 Parallelism (arcmin): 3 Bevel: Protective as needed Clear Aperture (%): 90 Edges: Fine Ground Knoop Hardness (kg/mm 2 ): 1,150.00 Optical Properties Coating: S1: Hydrophobic DLC S2: 8-12µm BBAR Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Silicon (Si) Surface Quality: 80-50 (Scratch number refers to width in microns) Transmission (%): >70 (average, @ 8-12µm) Wavelength Range (nm): 8000 – 12000 Surface Flatness (P-V): 3-5λ per inch across clear aperture Threading & Mounting Mount: Unmounted Environmental & Durability Factors Coating Abrasion: S1: Severe, per MIL-PRF-13830B S2: N/A Coating Humidity: S1 & S2: ≥24 Hours per MIL-PRF-13830B Coating Salt Spray: S1 & S2: ≥24 Hours per MIL-PRF-13830B Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
