Dual Axis Linear Scale Micrometer

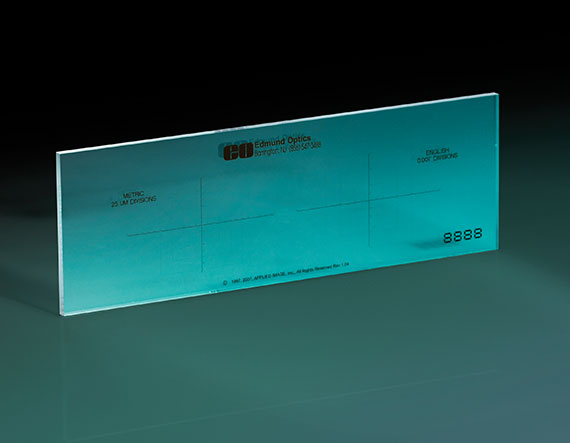

Product Details Dual Axis Design English and Metric Scales NIST Certified Version Available Our Linear Scale Stage Micrometer is designed to accurately calibrate machine vision systems simultaneously in the X- and Y- axes. This allows calibration without rotation, and without compensation for camera aspect ratios. Micrometer features two scales – a metric scale featuring 25μm divisions, and an English scale featuring 1 mil (0.001″) divisions. Target is chrome on glass or chrome on opal. Specifications General NIST Certification: No Physical & Mechanical Properties Scale Divisions: Metric: 25μm English: 1 mil (0.001″) Dimensions (mm): 25.4 x 76.2 Thickness (mm): 1.50 ±0.100 Dimensional Tolerance (mm): ±0.100 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Chrome on Glass Surface Quality: 60-40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
