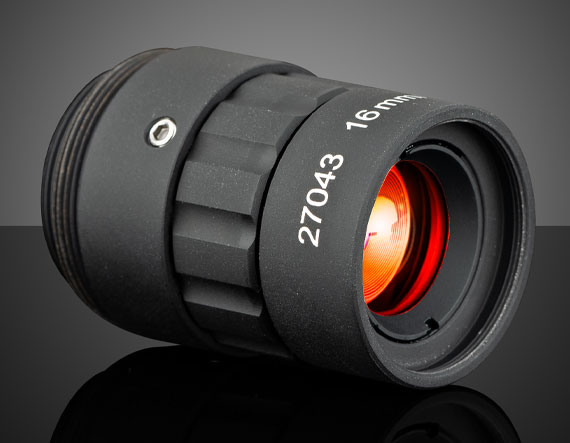

E Series 16mm ⅔” Format Fixed Focal Length Lens

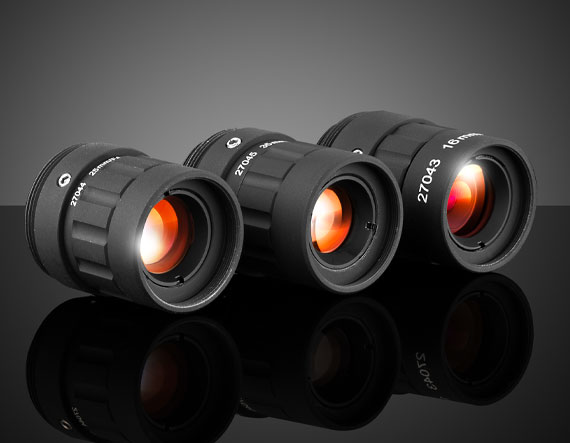

Product Details Cost Effective Solution for Systems that Require Large Depth of Field Up to ⅔”, C-Mount Lens Ideal for Logistics and Barcode Scanning Applications Edmund Optics E Series Fixed Focal Length Lenses provide an affordable fixed focal length imaging solution without compromising performance. These lenses are designed for logistics applications that need to identify product size and shape, read barcodes, and help find product locations. These systems often don’t require lenses designed with more demanding specifications like large format sensor coverage and small pixels, which can be costly. Edmund Optics E Series Fixed Focal Length Lenses are a balance of performance and cost designed with a maximum format of 2/3”. To maintain affordability in prototyping and mass production, the lens housings have been simplified by removing focusing mechanics. However, the focus can still be adjusted by threading the lenses into and out of the camera, then locked with a locking ring. These lenses maintain performance control with an adjustable iris ranging from f/4 to f/16. Specifications General Product Family: E Series Physical & Mechanical Properties Iris Option: Variable Length (mm): 38.10 Outer Diameter (mm): 25 Optical Properties Horizontal Field of View, 2/3″ Sensor: 30.7° Maximum Image Circle (mm): 11.00 Number of Elements (Groups): 6 (5) Focal Length FL (mm): 16.00 Working Distance (mm): 250 – ∞ Aperture (f/#): f/4 – f/16 Coating: λ/4 MgF 2 Maximum Distortion (%): 0.99 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M22.5×0.5 Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
