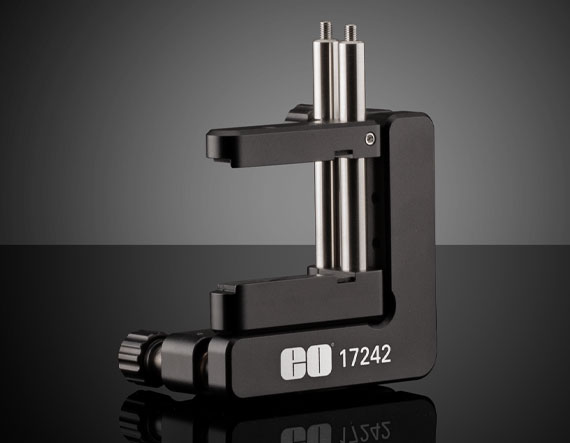

E-Series Adjustable Rectangular Kinematic Mount

Product Details Essential Mount for Experiments and OEM System Compatible with 3–38.1mm Rectangular Optics Compatible with 4-40mm Diameter Optics M6 x 0.25 (101.6 TPI) Adjustment Screws E-Series Adjustable Size Kinematic Optical Mounts are ideal for integrating a range of round, rectangular, and square optical components. These kinematic mounts offer many features essential for applications in R&D, prototyping, and OEM system integration. Wide clear apertures enhance compatibility for both reflective optics like mirrors and transmissive optics like beamsplitters, filters, and cylinder lenses. The two M6 x 0.25 (101.6 TPI) adjustment screws provide smooth movement and can be driven by hand or by Allen key (2mm key size) for tip and tilt optical adjustment and alignment (±3.5°). The adjustment screw knobs are removable to create a more compact form factor. E-Series Adjustable Size Kinematic Optical Mounts are compatible with M4, 8-32, and M6 x 1.0 hardware for increased mounting versatility and direct compatibility with TECHSPEC Metric Stainless Steel Mounting Posts and Pedestal Posts . Note: #17-242 has an optical axis height of 38.1mm when mounting a 25.4mm optical component. #17-243 has a constant 38.1mm optical axis height when mounting any compatible sized optical component. Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Rectangular Number of Adjustment Screws: 2 Physical & Mechanical Properties Construction: Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings Fine Tilt Angle (°): ±3.5 Fine Tip Angle (°): ±3.5 Adjustment Screw Pitch (mm): 0.25 Min. Thickness of Compatible Optics (mm): 2 Optical Axis Height (mm): 38.10 Threading & Mounting Size of Compatible Optics (mm): 2.00 – 38.10 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
