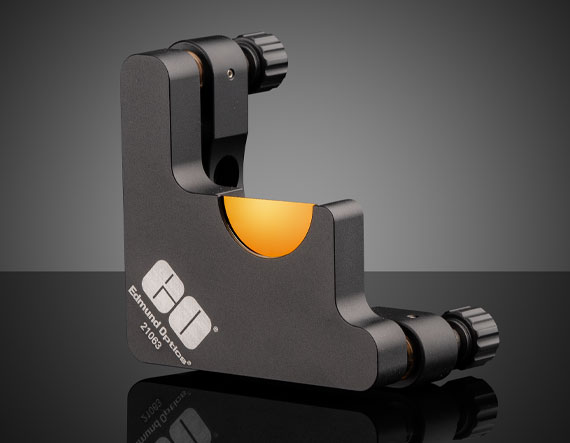

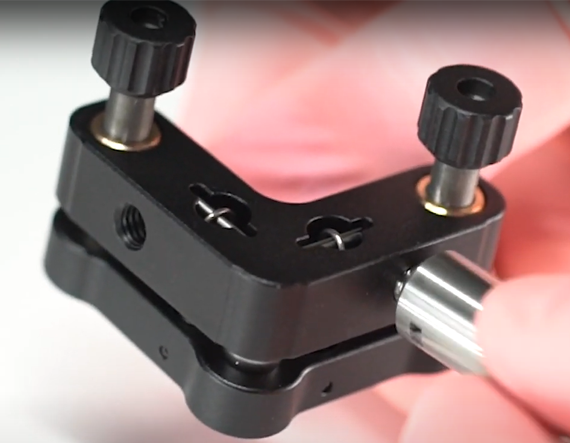

E-Series D-Shape Knife Edge Kinematic Mirror Mount

Product Details Ideal Mount for 1″ Knife-Edge Pickoff Mirrors Economic Price M6 x 0.25 (101.6 TPI) Adjustment Screws E-Series Kinematic D-Shape Optical Mirror Mounts offer many high value features essential for mounting 1″ (25.4mm) diameter Knife-Edge Pickoff Mirrors . The mounts are offered with 2 screws for tip and tilt optical adjustment and alignment (±3.5°). The M6 x 0.25 (101.6 TPI) adjustment screws provide smooth movement and can be driven by hand or by Allen key (2mm key size). The adjustment screw knobs are removable to create a more compact form factor. E-Series Kinematic D-Shape Optical Mirror Mounts feature mounting holes with both a counterbore designed to accommodate M4 or 8-32 mounting hardware, and M6 x 1.0 internal threads for increased mounting versatility and direct compatibility to T ECHSPEC Stainless Steel Mounting Posts and Pedestal Posts . Specifications General Type: Adjustable – Tip-Tilt Type of Optics: D-Shaped Number of Adjustment Screws: 2 Physical & Mechanical Properties Clear Aperture CA (mm): 23 Construction: Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings Fine Tilt Angle (°): ±3.5 Fine Tip Angle (°): ±3.5 Adjustment Screw Pitch (mm): 0.25 Max. Thickness of Compatible Optics (mm): 7 Optical Axis Height (mm): 38.10 Threading & Mounting Size of Compatible Optics (mm): 25.40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
