Edmund Optics TPA Ultrafast Autocorrelator by APE (700-1100nm)

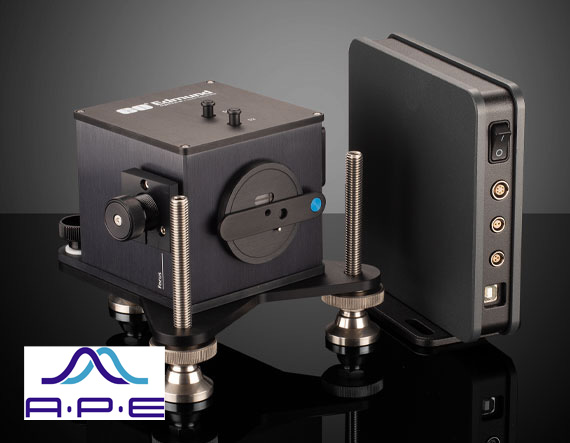

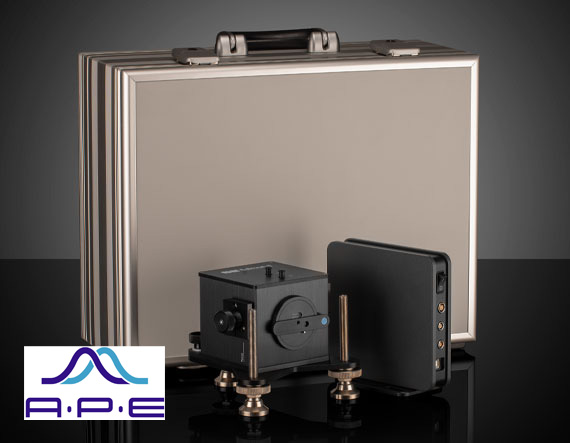

Product Details Trusted APE Performance with Same Day Availability TPA Detector with >0.1W 2 Sensitivity @ 700 – 1100nm Includes a Controller with USB Interface and Ready to Use Data Acquisition Software Compact Design and Tuning Free Wavelength Matching Ideal for Low and High Repetition Rate Ultrafast Lasers The Edmund Optics Ultrafast Autocorrelator by APE is used to characterize ultrafast laser pulses originating from Ti:sapphire and Yb:doped lasers. Featuring a built-in Two Photon Absorption (TPA) detector, this autocorrelator is ideal for measuring ultrafast femtosecond and picosecond laser pulses at wavelengths from 700 to 1100nm. The highly sensitive TPA detector allows for measurements of ultrafast laser pulses with high sensitivity by eliminating the need for angle tuning of the SHG nonlinear crystal. The Edmund Optics Ultrafast Autocorrelator by APE is designed with a compact form factor and can be mounted onto an adjustable optical mount for easy incorporation into any ultrafast optical setup. Each autocorrelator ships with a built-in TPA detector, a controller with USB-interface, ready to use data acquisition software, and TCP/IP-based software with a subset of SCPI standard based commands that allow for users to program automated measurement routines. The Edmund Optics Ultrafast Autocorrelator by APE is calibrated to a traceable standard in accordance with NIST (U.S. National Institute of Standards and Technology) measurement traceability specifications. Specifications General Dimensions (cm): 10.2 x 10.2 Delay Resolution: <0.001 % of Scan Range Measurement Mode: Collinear Intensity SHG Phase Matching: Not Required Trigger Mode: 300Hz - 50kHz Fitting Routine: Gaussian, Sech2, Lorentz Calibration: Certified NIST Traceable Calibration Physical & Mechanical Properties Input Aperture (mm): 6 Optical Properties Wavelength Range (nm): 700 - 1100 Measurable Pulse Duration: 50 - 3500fs Input Beam Polarization: Linear/Horizontal Delay Linearity: <1% Electrical Scan Range: 150fs - 15ps Sensitivity (W 2 ): <0.1 Repetition Rate (Hz): >300 Maximum Input Power/Energy: 300mW/5µJ Hardware & Interface Connectivity Computer Interface: USB Regulatory Compliance Certificate of Conformance: View ×
