English Post Pivot Base

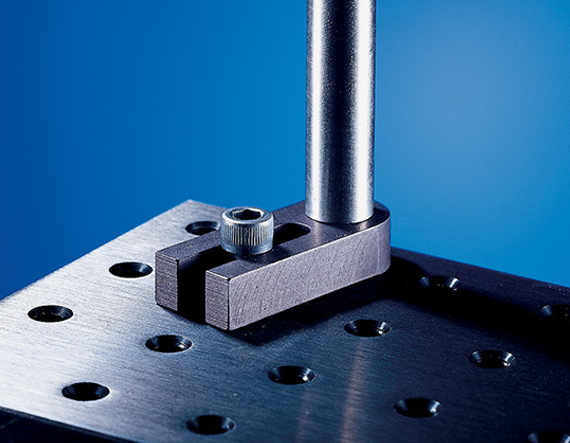

Product Details Slot Adjustment Range of 1.00″ The narrow slotted mounting base is used for the positioning of 0.5″ dia. stainless steel posts and post holder assemblies. The post/post holder is attached to the base via a counterbored clearance hole with a ¼-20 socket screw. The base is held in place with another socket screw in the slot. The slot length allows the post to be centered at the mid-point laterally or at 45° on a 1″ center hole breadboard. Anodized aluminum. Specifications General Type: English Note: Includes ¼-20 Cap Screws Compatible Post Holder: English Type (¼-20) Physical & Mechanical Properties Length (mm): 47.80 Width (mm): 19.10 Thickness (mm): 9.50 Construction: Black Anodized Aluminum Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
