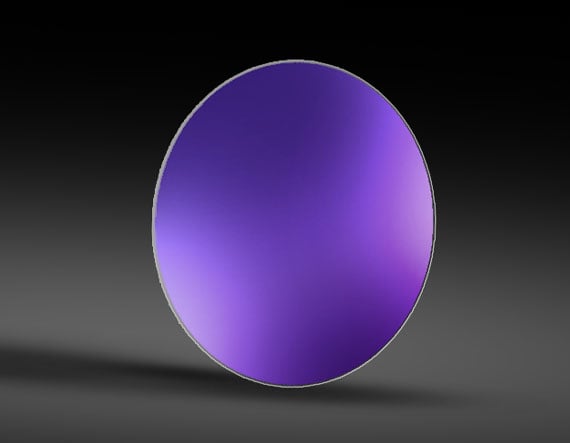

Everix Ultra-Thin OD 2 Bandpass Filter, 520nm, 12.5mm Dia.

Product Details Designed for Common LED and Laser Diode Wavelengths Scratch Insensitive, Ultra-Thin Design Easily Integrated into Portable Devices Everix Ultra-Thin Broadband Bandpass Filters are designed for common LED and laser diode wavelengths. With an exterior polymeric protective layer, these filters are scratch-insensitive, shatterproof, and easy to clean. These filters feature an average transmission of 65%, average optical density of 2.0, and maximum thickness of 400 µm. Ultra-Thin Broadband Bandpass Filters are created with a lightweight, ultra-thin design and can be easily integrated into portable systems, including point of care medical devices, AR/VR wearables, and spaceborne systems. For more information on this patented ultra-thin filter technology, visit our Everix brand page . Note: Custom filter designs can be purchased directly from Everix . Specifications General Type: Flexible Filter Physical & Mechanical Properties Diameter (mm): 12.45 ±0.15 Clear Aperture (%): >90 Maximum Thickness (μm): 400 Optical Properties Optical Density OD (Average): 2.0 Center Wavelength CWL (nm): 520.00 Full Width-Half Max FWHM (nm): 30.20 (maximum) Transmission (%): >65% Average Center Wavelength CWL Tolerance (%): ±2 Regulatory Compliance Certificate of Conformance: View ×
