Everix Ultra-Thin OD 2 Longpass Filter, 600nm, 12.5mm Square

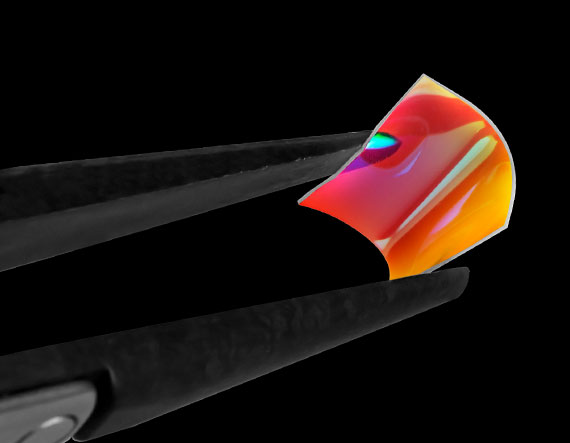

Product Details Ultra-Thin, Flexible Substrate Sharp Cut-On Wavelength Designs Extruded Thin Film, Insensitive to Scratches Everix Ultra-Thin Longpass Filters combine high performance and low cost in a new class of thin film interference filters that are flexible, scratch insensitive, and ultra-thin (200 – 500μm). These filters feature cut-on wavelengths in the visible range with cut-on tolerances of ±3% typical and >85% average transmission. The flexible extruded thin film filters are complex multilayer filters, which excel across a variety of needs, including longpass, edge, and notch filters. Everix Ultra-Thin Longpass Filters are ideal for demanding vision and medical technology applications. Note: Custom filter designs can be purchased directly from Everix . Specifications General Type: Flexible Filter Physical & Mechanical Properties Dimensions (mm): 12.5 x 12.5 Length (mm): 12.50 Thickness (μm): 200 – 500 Width (mm): 12.50 Dimensional Tolerance (mm): ±0.1 Clear Aperture (%): >90 Optical Properties Optical Density OD (Average): 2.0 (absolute) Cut-On Wavelength (nm): 600.00 Transmission (%): >85 (average) Cut-On Tolerance (%): ±3 typical Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
