Fiber Spatial Filter-FC

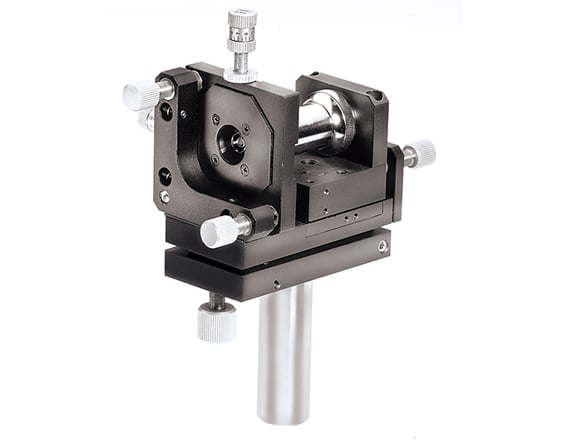

Product Details X-Y Micrometer Translation Gimbal Tilt Control for Fiber Alignment Z-Axis Translation for Objective Mount Our Metric Spatial Filters are designed to ease fiber optic and pinhole system integration. With ±1.5mm micrometer driven X-Y translation, 2.5μm resolution, and an objective mount with 10mm Z-axis translation, these Metric Spatial Filters are ideal for a range of DIN and JIS standard objectives . The fiber optic metric spatial filter provides easy connection for fiber optics with an FC termination and features gimbal tilt control for fiber alignment with a ±2° adjustable angle range. The pinhole metric spatial filter includes a pinhole adapter for integrating mounted and unmounted pinholes. Note: Metric Spatial Filters are only compatible with the following objectives: DIN Achromatic 4X ( #43-902 ), DIN Plan 4X ( #67-706 ), and the JIS Achromatic 10X. Specifications General Type: Adjustable – Linear (XYZ) & Tip-Tilt Type of Optics: Fiber Connector Note: 10X microscope objective included Physical & Mechanical Properties Construction: Black Anodized Aluminum Linear Travel (mm): XY: ±1.5, Z: ±5 Linear Travel Resolution (μm): 2.5 (XY) Tip/Tilt Angle (°): ±2 Base Tilt Angle (°): ±2 Electrical Fiber Connection: FC Hardware & Interface Connectivity Type of Drive: Differential Micrometer (XY) Threading & Mounting Compatible Post: M6 x 1.0 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
