Film-Format Achromatic Polymer Retarder λ/4 12.7mm Dia AR

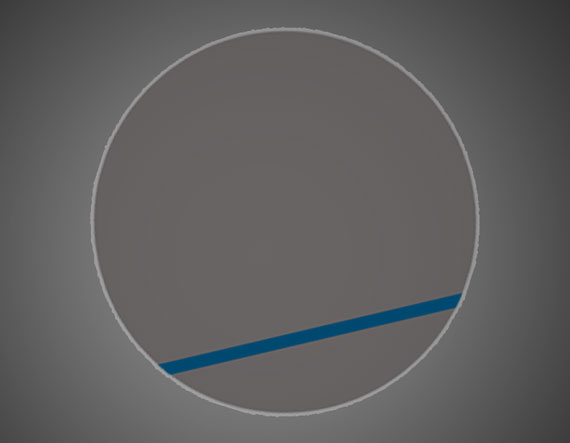

Product Details Ultra-Thin ≤0.55mm Substrates for OEM Integration Options For 700-1100nm and 700-1550nm Wide Acceptance Angle Tolerance of ±10° Ultra-Thin NIR Achromatic Polymer Retarders feature an optically fused and adhesive-free construction, allowing for high temperature resistance, high transmission, and an ultra-thin format. These retarders are designed with a multi-layer polymer stack and feature a 0.35mm thickness for λ/2 retarders and 0.55mm thickness for λ/4 retarders. Available either uncoated or with an AR-Coating, these retarders offer a retardance tolerance of λ/100 in the NIR range at a wide range of angles of incidence. Uncoated Ultra-Thin NIR Achromatic Polymer Retarders offer an increased retardance range of 700-1550nm while the coated options feature improved transmission from 700-1100nm. These waveplates are ideal for NIR imaging and analytical instrumentation, as well as OEM integration and other applications requiring a small form factor. Specifications General Note: Slow axis marked with blue dot on part and stripe on protective film Physical & Mechanical Properties Diameter (mm): 12.70 +/- 0.15 Thickness (mm): 0.55 Nominal Optical Properties Angle of Incidence (°): ±10 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Polymer Stack Retardance: λ/4 ± λ/100 Surface Quality: 60-40 Coating Specification: BBAR: R<= 0.75% @ 700-1100nm (per surface) Wavelength Range (nm): 700 - 1100 Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 500 Watt/cm 2 CW, .3 J/cm 2 10 nsec pulses @ 532nm, 2 J/cm 2 20 nsec pulses @ 1064nm typical Coating Type: Anti-Reflection (both sides) Environmental & Durability Factors Operating Temperature (°C): -20 to +40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
