Filter Holder Plate

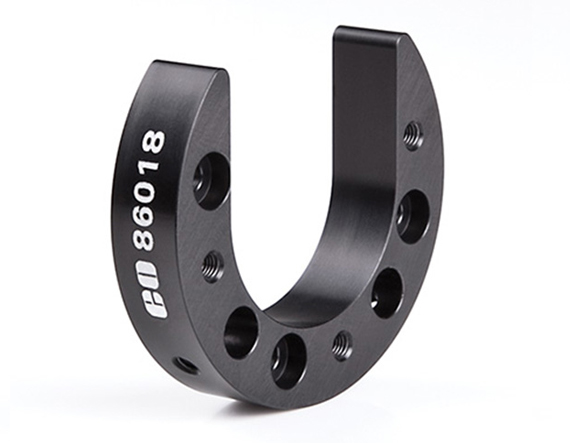

Product Details Specialized Plates Designed to Hold and Position Optics Filter Holder Plate with Interchangeable Filter Holder These specialized TECHSPEC Cage System Filter Holder Plates and Filter Holders are designed to hold and position a range of optical components . Like a standard cage system plate, the anodized aluminum, U-shaped Filter Holder Plate features 6mm rod holes, in addition to being able to accept a Delrin interchangeable filter holder that easily slides into the filter holder plate. Quick Video Demonstration Maximize your application performance with the right products. View a quick video demonstration of TECHSPEC Cage System components: Filter Holder Plate and Interchangeable Filter Holder . Specifications General Function: Fixed Note: Black Anodized Aluminum Physical & Mechanical Properties Plate Inner Diameter (mm): 30.0 Bolt Circle Diameter for 6mm Dia. Thru (mm): 38.0 Bolt Circle Diameter for M3 C’bore (mm): 38.0 Dimensions (mm): 50 Dia. Thickness (mm): 10.00 Bolt Circle Diameter for M3 Thru (mm): 38.0 Threading & Mounting Mounting Threads: (2) 6 mm Rod Holes, (3) C’Bore Holes, (3) M3 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
