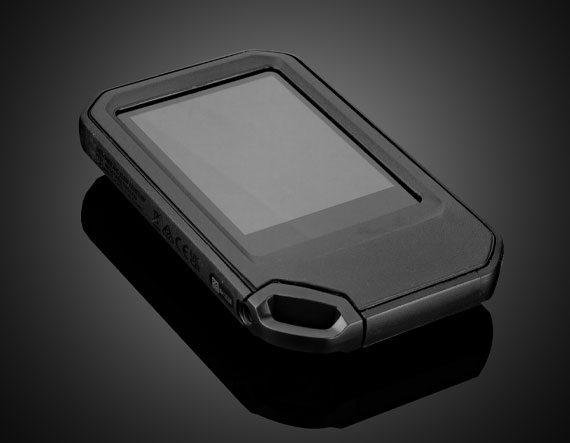

FLIR C5 Compact Thermal Imaging Camera

Product Details Compact, Lightweight Thermal Imagers for Field Use Touchscreen Interface with Built-in Flashlight and Point-and-Shoot Operation Durable, Drop-Tested, and Waterproof Design Wi-Fi for fast Sharing and Reporting The FLIR Cx Series delivers compact, easy-to-use thermal imaging for industrial inspections, maintenance, and troubleshooting. With touchscreen operation, built-in flashlights, and rugged, drop-tested designs, these cameras are built for durability and fast on-the-job use. The C3-X (128 × 96 resolution) offers an affordable option for quick diagnostics and basic troubleshooting, while the C5 (160 × 120 resolution) provides greater image detail and higher temperature range for more advanced inspections. Both models feature built-in Wi-Fi for quick image sharing and reporting directly from the field. Lightweight, portable, and simple to operate, the Cx Series is ideal for technicians who need reliable thermal imaging that fits easily into daily workflows. Model C3-X C5 Resolution 128 × 96 (12,288 pixel) 160 x 120 (19,200 pixel) Temp Range -20 to 300°C (-4 to 572°F) -20 to 400°C (-4 to 752°F) Thermal sensitivity <0.07°C <0.07°C Accuracy: At ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F), 0°C to 100°C (32°F to 212°F): ±3°C (±5.5°F); 100°C to 300°C (212°F to 572°F): ±3% Specifications Measurement Tools: Spotmeter; box with min./max. Standard Measurement Temperature (°C): -20 to 400°C (-4 to 752°F) Spectrum: Thermal General Operating Lifetime (hours): 4 hours Model Number: Cx Series Field of View (°): 54° × 42° Contents of Kit: Thermal Camera, USB Cable, Wrist Strap Lanyard, Carrying Pouch, Printed Documentation Operating Modes: Infrared image, Visual image, MSX, Picture-in-picture (IR area on visual image) Physical & Mechanical Properties Dimensions (mm): 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in) Weight (g): 0.19 kg (0.42 lb) Accuracy (%): At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3% Drop Test: 2 m (6.6 ft) Optical Properties Resolution: 5 MP Spectral Range: 8–14 µm Focus Range (mm): Focus free Color: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC Performance Thermal Resolution (Pixels): 160 × 120 (19,200 pixels) Minimum Focus Distance (m): Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in) Electrical Frequency (Hz): 8.7 Hz Sensitivity (W 2 ): <70 mK Charging Time (minutes): 120 Battery Type: Rechargeable built-in Lithium ion battery Hardware & Interface Connectivity Connector: USB-C (1 A) Threading & Mounting Mount: Tripod: UNC ¼"-20 (built-in) Environmental & Durability Factors Operating Temperature (°C): -10 to 50°C (14 to 122°F) Storage Temperature (°C): -40 to 70°C (-40 to 158°F) Environmental Rating: Camera housing and lens: IP54 (IEC 60529) Additional Info Measurement Correction: Emissivity; matte/semi-matte/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation Regulatory Compliance Certificate of Conformance: View ×
