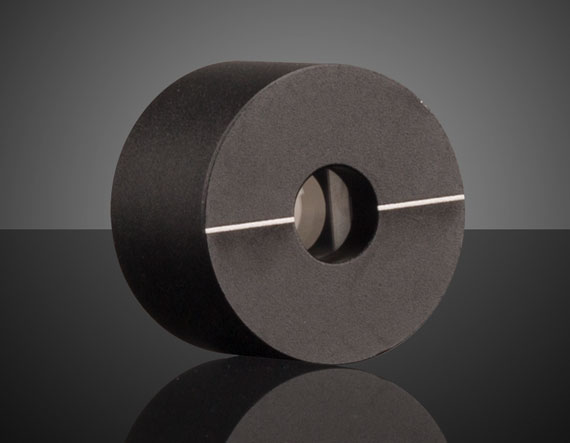

Glan-Taylor Polarizer 200 – 350nm, 8mm

Product Details High Extinction Ratios up to 200 000:1 High Laser Damage Thresholds up to 5 J/cm 2 @ 1064nm Glan-Type Polarizers are mounted, polarizing prisms used in applications that require broad spectral ranges, high extinction ratios, or high polarization purities. Glan-Taylor Polarizers are medium-power, air-spaced UV to NIR polarizers that transmit the extraordinary beam. The ordinary beam is then reflected and absorbed by black glass plates that have been cemented to the prism. Glan-Laser Polarizers are similar to Glan-Taylor, but are designed for higher power applications and appropriate for use in Q-switched laser cavities. Glan-Laser Polarizers utilize an advanced polishing technique for minimizing surface scatter and feature two escape windows for passing the high power rejected light. Glan-Thompson Polarizers are low power polarizers that are ideal for UV, visible, or NIR applications, feature a cemented design, and transmit the extraordinary beam while absorbing the reflected ordinary beam. Specifications General Type: Linear Polarizer Physical & Mechanical Properties Clear Aperture CA (mm): 8.0 Diameter (mm): 25.40 Length (mm): 17.00 Construction: Crystalline Glan-Taylor Polarizer Optical Properties Coating: Single Layer MgF 2 Extinction Ratio: <5 x 10 -6 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More α-BBO Surface Quality: 20-10 Transmitted Wavefront, P-V: λ/2 @ 632.8nm Beam Deviation (arcmin): <3 Transmitted Wavefront Distortion (RMS): λ/4 @ 632.8 nm Wavelength Range (nm): 200 - 350 Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 2 J/cm 2 @ 1064nm, 10ns, 10Hz Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
