High Load Capacity Motorized Gimbal, 300mm Payload Width

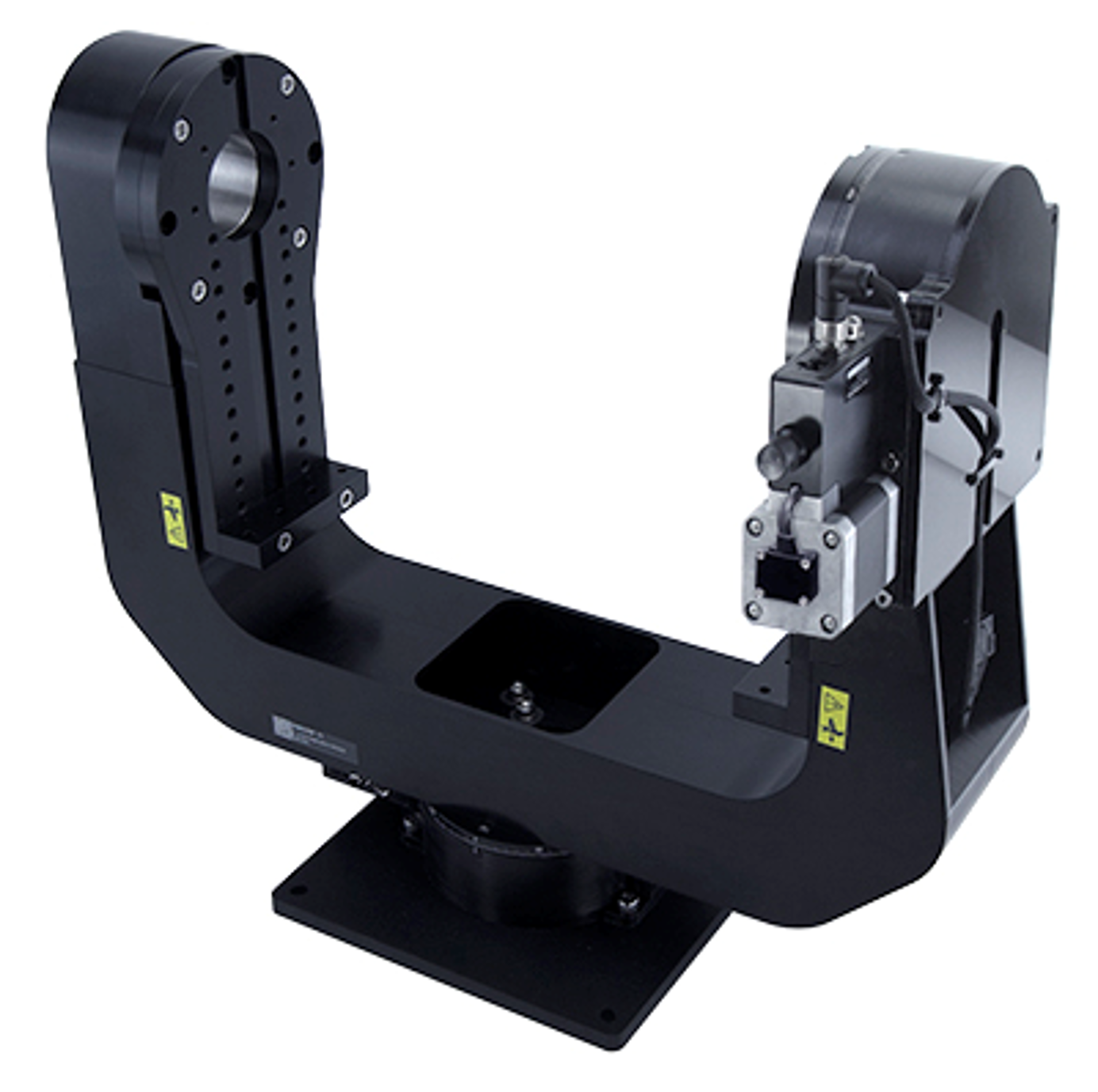

Product Details 360° Continuous Travel Speed up to 24°/s, Max Torque of 10N-m Max Centered Payload of 15kg; Max Cantilevered Load Capacity of 20N-m 300 and 500mm Payload Width Frame Options Available Zaber High Load Capacity Motorized Gimbals are large, motorized two-axis rotation platforms that simplify the angular positioning of large components or subsystems within an optical system. All gimbals feature 360° continuous travel, two axis rotation around a single point, speed up to 24°/s, a Cantilevered Load Capacity of 20N-m, a rotary quadrature encoder resolution of 200 counts per revolution (CPR), and are available for payload widths of either 300 or 500mm. Drilled and tapped crossmember plates, used to create a mounting platform within the gimbal, are available with either English ( #71-113 or #71-115 ) or Metric ( #71-112 or #71-114 ) mounting options, and can also be used to quickly swap different components or pre-built subsystems into the gimbal. Zaber High Load Capacity Motorized Gimbals feature built-in controllers and motors allowing for closed-loop operation, slip/stall recovery, and independent axis control via a single RS-232 or USB connection for plug-and-play functionality and easy system integration. These gimbals are ideal for telecom, scanning, and tracking applications where high-load capacity and high-precision angular positioning is required. Note: A 48 VDC universal power supply , data cables for daisy chaining, and computer interface cables ( USB or RS-232 ) are sold separately as accessories. All Zaber High Load Capacity Motorized Gimbals are compatible with Zaber Launcher and Zaber’s Motion Library . U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: English or Metric Encoder: Yes Manufacturer: Zaber Technologies Inc. Type of Motor: Stepper Motor Encoder Type: Rotary Quadrature Encoder Physical & Mechanical Properties Type of Movement: Rotary Stage Size (mm): 450.4 x 395.5 x 210.1 Travel (°): 360 Accuracy (°): 0.16 (unidirectional) Backlash (°): <0.05 Gear Drive Ratio: 180:1 Repeatability (°): <0.005 Speed (°/s): 24 Weight (kg): 13.2 Encoder Resolution: 200 CPR Cantilevered Load Capacity (N⋅m): 20 Max. Continuous Torque (N⋅cm): 1000 Aperture Diameter (mm): 50.8 Electrical Maximum Operating Current (mA): 2200 Hardware & Interface Connectivity Type of Drive: Precision Worm Gear Power Supply: 48 VDC Computer Interface: RS-232 Environmental & Durability Factors Operating Temperature (°C): 0-50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
