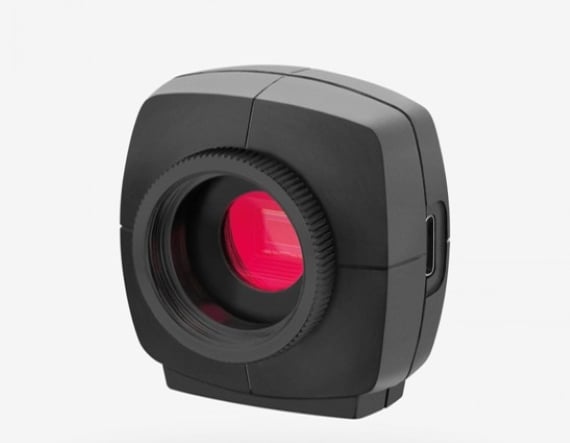

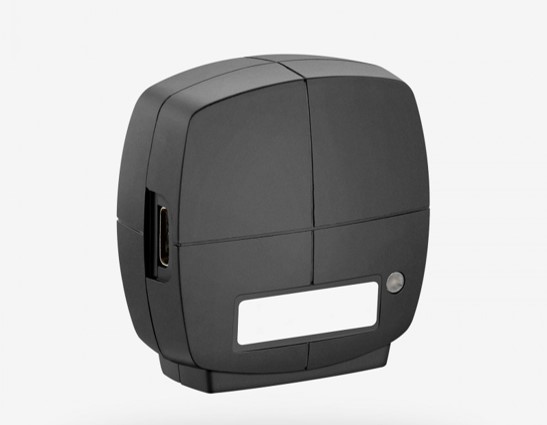

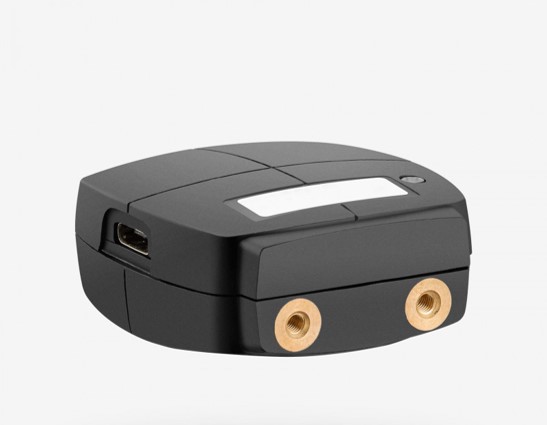

IDS U3-3860LE-M-GL, USB 3.0, 1/2.8″ Monochrome Camera

Product Details Up to 8.0MP Resolution with Framerates up to 230fps Board Level Options with C/CS-Mount or S-Mount Available GenICam USB3 Vision Compliant IDS Imaging uEye LE/XLE USB3.1 Cameras utilize IDS Imaging’s peak SDK platform that supports GeniCam and USB3 Vision standards for ease of software development and integration. These cameras are available in board-level or housed options with S-Mount or C/CS-Mount versions. The C/CS-Mount configurations come with a 5mm spacer to easily adapt between C-Mount and CS-Mount lenses. IDS Imaging uEye LE/XLE USB3.1 Cameras are ideal for small device construction, medical technology, robotics, and machine vision applications. With a compact design, the XLE version is suitable for integration into embedded systems whereas the LE version is suitable for small device projects. Specifications Spectrum: Monochrome General Type: Monochrome Camera Model Number: U3-3860LE-M-GL Manufacturer: IDS Imaging Development Systems Camera Series: uEye+ LE Physical & Mechanical Properties Dimensions (mm): 47 x 46 x 23.9 (excludes connectors and lens mount) Weight (g): 36 Housing: Full Sensor Image Buffer: Not Specified Sensor Format: 1/2.8″ Resolution (Megapixels): 2.12 Frame Rate (fps): 135.00 Pixels (H x V): 1,936 x 1,096 Pixel Size, H x V (μm): 2.90 x 2.90 Sensing Area, H x V (mm): 5.61 x 3.175 Imaging Sensor: Sony IMX290 Type of Sensor: Progressive Scan CMOS Shutter Type: Rolling Pixel Depth: 12 bit Exposure Time: 0.011ms – 1649ms Dynamic Range (dB): 72.00 Machine Vision Standard: USB3 Vision Electrical Power Consumption (W): 1 – 1.5 Hardware & Interface Connectivity Interface: USB 3.0 Connector: USB Type-C Power Supply: Power over USB GPIOs: N/A Synchronization: Hardware Trigger (GPIO); Software Trigger Interface Port Orientation: Back Panel (Right Angle) GPIO Connector Type: No GPIO Connector Available Threading & Mounting Mount: C/CS-Mount Mounting Threads: ¼-20 with Tripod Mount Adapter #89-739 Environmental & Durability Factors Operating Temperature (°C): 0 to +55 Storage Temperature (°C): -20 to +80 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
