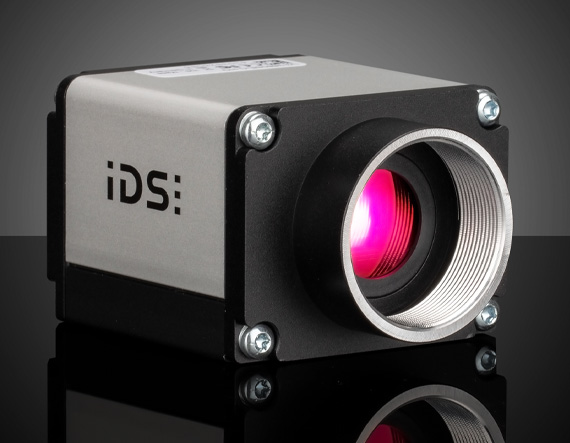

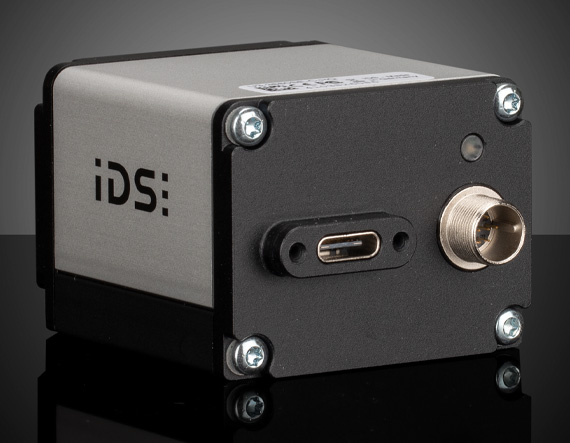

IDS U3-3890SE-M-GL, USB 3.0, 1/1.7″ Monochrome Camera

Product Details Standard (SE), Compact (CP), and Ultra Compact (XCP) Housing Options Available C-Mount with Large Format CMOS Sensors up to 1.1” Up to 20.44MP Resolution with Framerates up to 396fps IDS Imaging uEye CP/XCP/SE USB3 Cameras utilize IDS Imaging’s peak SDK platform that supports GeniCam and USB3 Vision standards for easy software development and integration. The CP cameras are the industry standard size of 29 x 29 x 29mm and work for almost any application. The XCP cameras have an ultra-compact size of 29 x 29 x 17mm and are an excellent option for price-sensitive, single-camera applications. The SE cameras have a larger housing size of 34 x 44 x 47mm to allow for exceptional heat management and are ideal for noise and heat-sensitive applications. IDS Imaging uEye CP/XCP/SE USB3 Cameras are ideal for manufacturing, industrial, and automation applications. Specifications Spectrum: Monochrome General Type: Monochrome Camera Model Number: U3-3890SE-M-GL Manufacturer: IDS Imaging Development Systems Camera Series: uEye+ SE Physical & Mechanical Properties Dimensions (mm): 34 x 44 x 47 (excludes connectors and lens mount) Weight (g): 110 Housing: Full Sensor Image Buffer: 128MB Sensor Format: 1/1.7″ Resolution (Megapixels): 12.00 Frame Rate (fps): 33.00 Pixels (H x V): 4,000 x 3,000 Pixel Size, H x V (μm): 1.85 x 1.85 Sensing Area, H x V (mm): 7.4 x 5.55 Imaging Sensor: Sony IMX226 Type of Sensor: Progressive Scan CMOS Shutter Type: Rolling Pixel Depth: 12 bit Exposure Time: 0.13ms – 609ms Dynamic Range (dB): 68.00 Machine Vision Standard: USB3 Vision Electrical Power Consumption (W): 2 – 3.6 Hardware & Interface Connectivity Interface: USB 3.0 Connector: USB Type-C, screwable Power Supply: Power over USB GPIOs: 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Voltage Output, 1 Ground Synchronization: Hardware Trigger (GPIO); Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 8-pin Hirose connector (HR25-7TR-8PA(73)) Threading & Mounting Mount: C-Mount Mounting Threads: ¼-20 with Tripod Mount Adapter #16-017 Environmental & Durability Factors Operating Temperature (°C): 0 to +55 Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 253: Contains SVHC(s) ×
