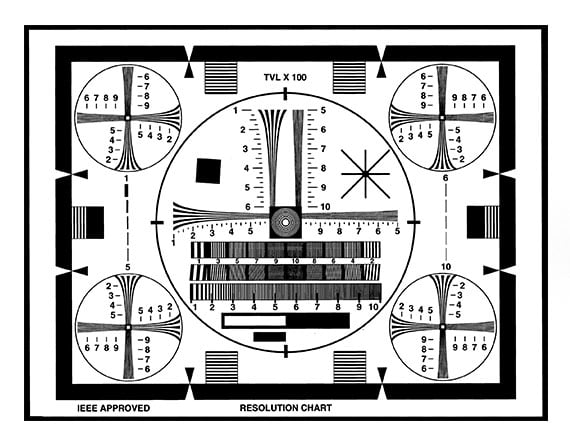

IEEE Reflection Target

Product Details Full Field Resolution Calibration Designed for Testing of Analog Imaging Systems The IEEE target has been designed as a method of characterizing the amount of fine detail (resolution) that a camera system is able to reproduce from an original image. Since resolution can be different throughout the field of view both horizontal and vertical resolution can be measured in the center of the target as well as in all four corners. Additionally, the IEEE target can be used to check scanning linearity, aspect ratio, shading and interlacing. Ideal for comparing and standardizing multiple video systems and ensuring repeatability. Specifications General Horizontal Resolution (TV Lines): 100 – 1000 Aspect Ratio: 4 H to 3 V Physical & Mechanical Properties Length (inches): 9 Width (inches): 7.3 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Photo Paper Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
