Image Analysis Micrometer

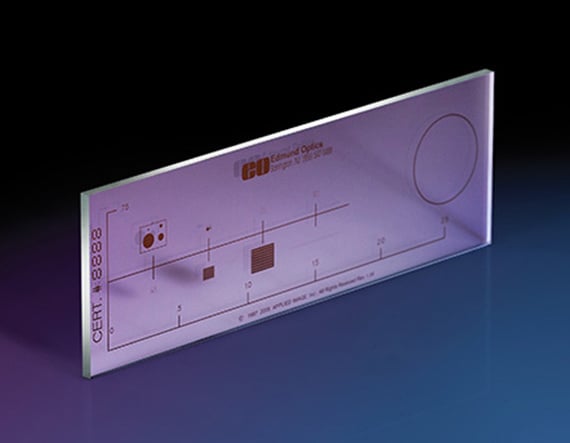

Product Details Designed for Morphological Calibration and Measurement 8 Test Plates of Various Patterns NIST Certified Version Available Image Analysis Micrometers are ideal for morphological calibration and measurement of two-dimensional shapes. They feature eight test plates in various sizes of circles, squares, lines, and other geometries. Small patterns, featuring diameters as small as 6.25µm, are ideal for image analysis and machine vision systems, whereas larger features, including a 2.5″ linear scale and 0.5” diameter circle, are available for macro inspection. Test plates 1-4 correspond to top patterns and 5-8 to bottom patterns from the left to right. Image Analysis Micrometers are available in NIST certified versions which conform to ASTM-E112 requirements with plate 1, 2, and 8 measured and calibrated. Specifications General NIST Certification: No Physical & Mechanical Properties Scale Divisions: 0 to 2.5 inches Increments: 0.5 inches Dimensions (mm): 25.4 x 76.2 Thickness (mm): 1.50 ±0.100 Dimensional Tolerance (mm): ±0.100 Pattern Tolerance (μm): ±2 (±4 for Plate 1 Item #3 and #4) Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Chrome on Glass Surface Quality: 60-40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
