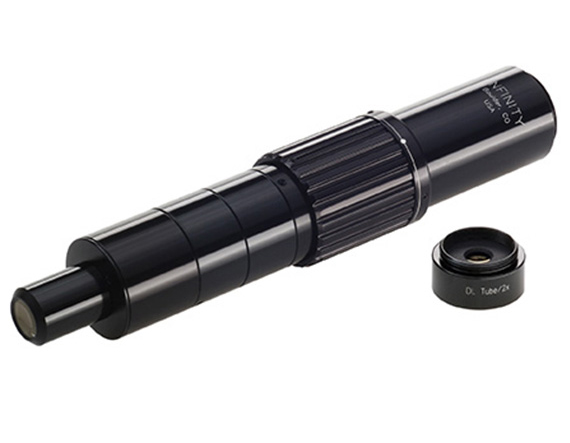

Infiniprobe S-80 UV Video Microscope

Product Details Available in Standard and Right Angle Versions Magnification Range from 0X to 8.0X Max. 2/3″ Sensor Format Direct Video C-Mount Coupling No Adapters Required The InfiniProbe is available in a model designed to continuously focus UV light. The InfiniProbe 8.0X UV Video Microscope boasts a magnification range of 0-8X, supports up to a 2/3″ format sensor, and offers direct video C-Mount coupling while incorporating exceptional resolution in the UV spectrum. Focusing from infinity down to a 0.8mm FOV at a WD of 20mm, the InfiniProbe 8.0X UV is capable of yielding magnifications up to 328X on a 13 inch monitor (based on a ½” sensor). To double magnification, add the DL-UV ( #58-947 ) or LDL-UV ( #58-948 ) Doubler Tube on the C-Mount. Mounting is provided through an included ¼-20 mounting clamp. A variety of UV lighting options are available including the MH-100 illuminator , UV curing lamps , and Broadband Fiber Coupled Illuminators . Specifications General Type: Long Distance Microscope Style: UV Physical & Mechanical Properties Length (mm): 180.00 Maximum Diameter (mm): 35 Weight (g): 184.3 Optical Properties Horizontal Field of View, 2/3″ Sensor: 1.1mm Horizontal Field of View, 1/2″ Sensor: 0.8mm Primary Magnification PMAG: 0X – 8.0X Working Distance (mm): 20 – ∞ Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Mount: C-Mount Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
