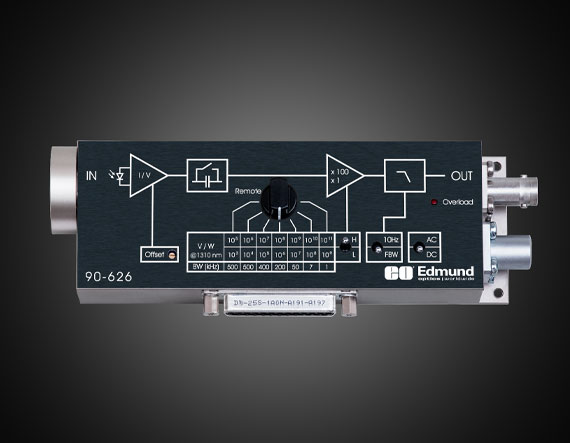

InGaAs Variable Gain Photoreceiver, 1310nm

Product Details Ultra-Wide Adjustable Transimpedance Gain from 10² to 10¹¹ V/W Exceptional Low-Noise, High-Sensitivity Single-Beam Detection Optimized for Absolute Optical Power Measurements Designed for Direct, Alignment-Free Integration Variable Gain Photoreceivers feature an ultra-wide adjustable transimpedance gain from 10² to 10¹¹V/W, enabling precise measurement of optical signals across a broad power range. Engineered for ultra-low noise performance, these photoreceivers achieve noise equivalent power (NEP) as low as 6fW/√Hz, ensuring accurate detection of extremely weak optical signals. Designed for single-beam detection, they provide maximum sensitivity and dynamic range, allowing for simple, alignment-free integration into optical systems. Variable Gain Photoreceivers are ideal for applications such as photonics research, optical communication testing, and precision low-light measurements. Note: Power supply sold separately. Please see specifications for more details. Specifications General Rise Time (μs): 0.7 – 300 Remote Control: Yes Note: Includes: LEMO 3-pin connector Datasheet Physical & Mechanical Properties Weight (g): 320 Dimensions (mm): Case Size: 170 x 60 x 45 Optical Properties Spectral Range: 900 – 1700 nm Sensor Detector Type: InGaAs PIN Electrical Noise Equivalent Power NEP (W/ Hz 1/2 ): 7 x 10 -15 – 2.2 x 10 -11 Bandwidth (-3 db): 500 KHz max Conversion Gain (V/W): Low Noise: 1 x 10 4 -1 x 10 10 (adjustable in decade steps) High Speed: 1 x 10 6 -1 x 10 12 (adjustable in decade steps) Hardware & Interface Connectivity Power Requirement: ±15 V, +150 mA/−100 mA, ±200 mA Power Supply: Power Supply Required and Sold Separately: USA: #59-180 Europe: #59-180 Japan: Not Available Korea: Not Available China: #59-180 Environmental & Durability Factors Operating Temperature (°C): 0 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
