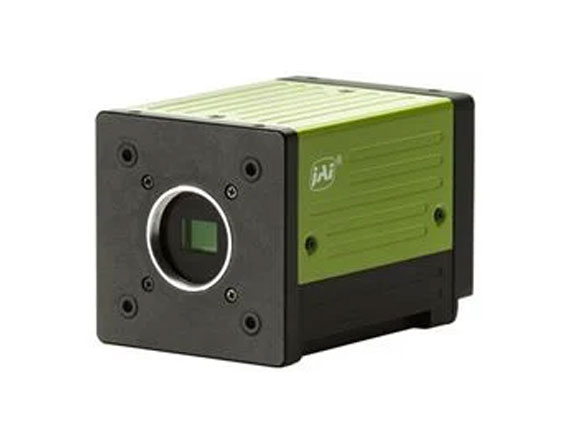

JAI Fusion, 1600D-10GE, 1/2.9″ 1.6MP, GigE Multispectral Camera

Product Details Multispectral Camera Designed with Multiple Sensors Designed for 400 – 670nm and 740 – 1000nm Wavelengths Backwards Compatible 10GigE Interface JAI Fusion Series Cameras are designed to image multiple wavebands at once, allowing for a more flexible imaging experience. Utilizing a prism as the camera input, the incoming light is separated and directed to the multiple sensors with precision per-pixel alignment, providing excellent resolution of the individual wavebands. With a backwards compatible 10GigE interface, these cameras are easily integrated into existing imaging systems. JAI Fusion Series Cameras have effective wavelength ranges of 400 to 670nm and 740 to 1000nm. These cameras are ideal for applications including surface inspection, NIR fluorescence, life sciences, and intelligent farming. Note: These cameras require prism-corrected imaging lenses; alternatively, standard imaging lenses with zero rear protrusion can be used with reduced performance. Downloadable software is available online. Specifications Spectrum: Multispectral General Type: Multispectral Camera Model Number: FS-1600D-10GE Manufacturer: JAI Camera Series: Fusion Physical & Mechanical Properties Dimensions (mm): 62 x 62 x 86.5 Weight (g): 270 Housing: Full Sensor Sensor Format: 1/2.9″ Resolution (Megapixels): 1.60 Frame Rate (fps): 226.00 Pixels (H x V): 1,440 x 1,080 Pixel Size, H x V (μm): 3.45 x 3.45 Sensing Area, H x V (mm): 5.0 x 3.7 Imaging Sensor: Sony IMX273 Type of Sensor: 2 CMOS (Vis/NIR) Shutter Type: Global Pixel Depth: 8/10/12 Bit Machine Vision Standard: GigE Vision Electrical Power Consumption (W): 10.4 Hardware & Interface Connectivity Interface: GigE (POE) Connector: RJ45 with Screw Locks Power Supply: Power Supply Required and Sold Separately: USA: #29-172 Europe: #29-172 Japan: #29-172 Korea: Not Available China: Not Available Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 12-pin Hirose Threading & Mounting Mount: C-Mount Environmental & Durability Factors Operating Temperature (°C): -5 to +45 Storage Temperature (°C): -25 to +60 Regulatory Compliance Certificate of Conformance: View ×
