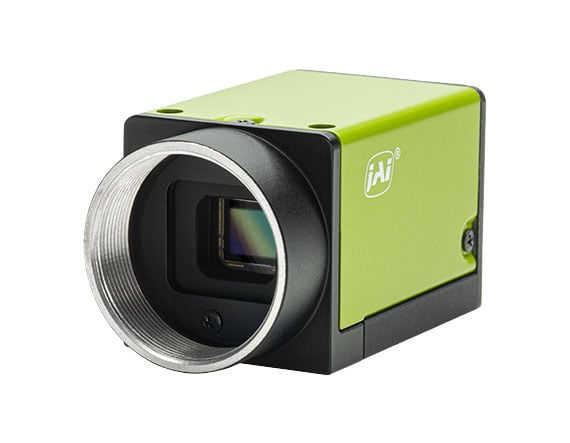

JAI Go-X, 2402M-PGE, 1/2.3″ 2.3MP, GigE Monochrom Camera

Product Details Up to 12.3 MP Resolution USB and GigE Versions Available Longest Industry Warranty (6 Years) JAI Go-X Series Cameras are designed to be compact, industrial grade, reliable cameras with excellent image quality. Featuring industrial grade shock and vibration ratings (80G/10G) as well as excellent thermal dissipation, these cameras are ideal for factory floors and assembly lines. Designed with a variety of capabilities, these cameras are capable of region-of-interest (ROI), blemish compensation with shading correction, and 8, 10, and 12-bit output. JAI Go-X Series Cameras are available in resolutions ranging from 2.3 to 12.3MP with both USB or Gigabit Ethernet (GigE) outputs. Downloadable software is available for both GigE and USB options. Specifications Spectrum: Monochrome General Type: Monochrome Camera Model Number: GOX-2402M-PGE Manufacturer: JAI Camera Series: Go-X Physical & Mechanical Properties Dimensions (mm): 29 x 29 x 51.5 Weight (g): 65 Housing: Full Sensor Sensor Format: 1/2.3″ Resolution (Megapixels): 2.30 Frame Rate (fps): 50.00 Pixels (H x V): 1,920 x 1,200 Pixel Size, H x V (μm): 3.45 x 3.45 Sensing Area, H x V (mm): 6.6 x 4.1 Imaging Sensor: Sony IMX392 Type of Sensor: Progressive Scan CMOS Shutter Type: Global Pixel Depth: 8/10/12 Bit Machine Vision Standard: GigE Vision Electrical Power Consumption (W): 3.7 Hardware & Interface Connectivity Interface: GigE (PoE) Connector: RJ45 with Screw Locks Power Supply: Power Supply Required and Sold Separately: USA: #29-171 Europe: #29-171 Japan: #29-171 Korea: Not Available China: Not Available Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 6-pin Hirose Threading & Mounting Mount: C-Mount Environmental & Durability Factors Operating Temperature (°C): -5 to +45 Storage Temperature (°C): -25 to +60 Regulatory Compliance Certificate of Conformance: View ×
