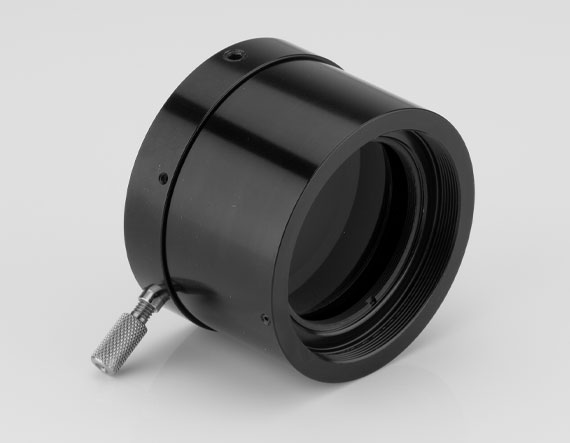

K2 Standard Objective

Product Details Multiple Configurations for Video/Photo/Visual Applications 3X Greater Magnification than Other Coaxial In-line Systems Highest Possible Long-Distance Resolution Focus from Infinity to 54mm Supplementary Focuser Available for CentriTel Capabilities Infinity K2/DistaMax Long Distance Video Microscopes, recognized as the standard in long-distance microscopes, now incorporate a patent-pending IVS focus system, further improving what was already a top performer. The IVS focus system makes the K2 DistaMax easier to use than previous models. To begin using the K2 DistaMax, simply choose an objective for the front and a camera mount for the rear. Infinity K2-DistaMax Long Distance Video Microscopes offer high magnifications and a dynamic working distance range, covering all sensors up to 35mm (43mm diagonal) formats. The K2 DistaMax Single-Port package includes a manual iris for light level and depth of field control. The Dual-Port package includes a right angle mirror for switching between views (not simultaneous viewing), in addition to the parts included in the Single-Port package. The K2 DistaMax is ideal for applications ranging from remote vacuum chamber viewing to on-line process control. The NWE Objective allows focus from infinity to as near as 675mm. Perhaps the most versatile K2 DistaMax objective, the NWE also can be used with the Microscope Objective Adapter Disc and other accessories. All objectives attach directly to a front dovetail. When combined with NWE Objective, Microscope Objective Adapter Disc, and Objective Adapter, the K2 DistaMax can interface common infinity-corrected microscope objectives, even when the Coaxial In-line Illuminator is used, making it a powerful direct coaxial in-line system. To enable CentriTel for all formats simply add the CentriTel Focuser, #87-430 . For viewing through an eyepiece (not included), adapter #58-796 is required. Specifications General Type: Lens Accessory Physical & Mechanical Properties Length (mm): 53.00 Maximum Diameter (mm): 58.0 Optical Properties Horizontal Field of View, 1/2″ Sensor: 6.74 – 20.5mm Working Distance (mm): 370 – 946 Magnification: 1.1X – 0.34X Numerical Aperture (NA) Range: 0.051 – 0.02 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
