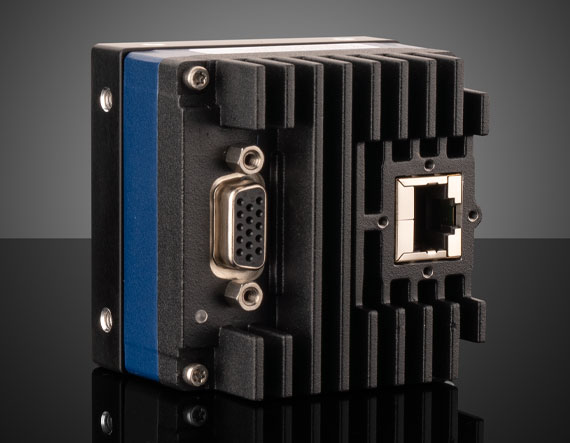

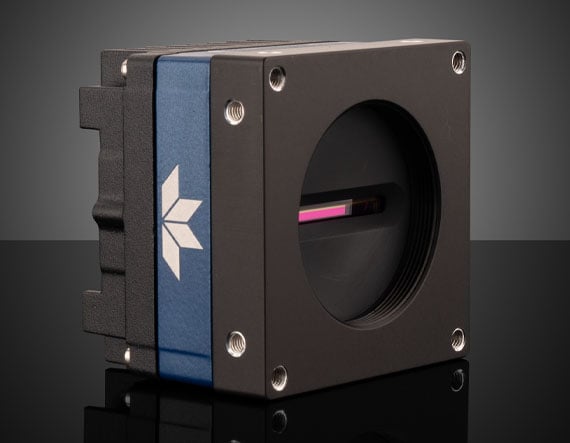

L2-GC-04K03N-00, DALSA Linea2 Multispectral Line Scan 5GigE Camera

Product Details Color and Multispectral Options Available Line Rates of 32 or 40kHz Simple Integration with 5Gbase-T (5GigE) Ethernet Connectivity 4k Resolution Option Available Teledyne Imaging DALSA Linea2 5GigE Line Scan Cameras utilize a single line of sensor pixels to build up a two-dimensional image at a lower cost than area scan cameras. The color camera features a line rate of 40kHz and a resolution of 4096 x 3 with 7µm pixels, whereas the multispectral camera features a line rate of 32kHz with a resolution of 4096 x 4 and 7µm pixels. The high framerates and dedicated RGB and NIR channels enable the detection of sensitive color differences in high-speed applications. Teledyne Imaging DALSA Linea2 5GigE Line Scan Cameras are ideal for automated optical inspections, sorting systems, materials grading and inspections, and general-purpose machine vision applications. The multispectral cameras include sensors that can capture RGB color and NIR in a single scan with minimal spectral crosstalk between the color and NIR channels due to their unique wafer-level dichroic filter coating. Download this whitepaper for more information on applications that would benefit from line scan camera technology. Note: An H15 cable is required for GPIO operation and is not included with these cameras. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Sapera LT is a free image acquisition and control software development toolkit (SDK) for Teledyne DALSA’S 1D cameras / 2D cameras / 3D Laser Profiler cameras and frame grabbers. Hardware independent in nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT supports image acquisition from cameras and frame grabbers based on machine vision standards including GigE Vision, CameraLink, CameraLink HS, CoaXpress, and USB3 Vision. Specifications Spectrum: Multispectral General Type: Multispectral Model Number: L2-GC-04K03N-00 Manufacturer: Teledyne DALSA Camera Series: LINEA2 TM Resolution (Pixels): 4096 x 4 Physical & Mechanical Properties Dimensions (mm): 62 x 62 x 49.3 (excludes connectors and lens mount) Weight (g): <280 Housing: Full Sensor Pixel Size, H x V (μm): 7.00 x 7.00 Type of Sensor: DALSA Line Scan CMOS Pixel Depth: 8/12 bit Dynamic Range (dB): 71.00 Machine Vision Standard: GigE Vision Read Noise (e - ): 9.5 Full Well Depth (ke - ): 32 Maximum Line Rate (kHz): 32 (x4 RBG + NIR) Electrical Power Consumption (W): 13 Hardware & Interface Connectivity Interface: 5GigE (PoE) Connector: 5GigE, RJ45 with Screw Locks Power Supply: +12 to +24V DC HD15 Connector or 48V POE Interface Port Orientation: Back Panel GPIO Connector Type: HD15 (High Density) Threading & Mounting Mount: M42-Mount Environmental & Durability Factors Operating Temperature (°C): -10 to +65 Regulatory Compliance Certificate of Conformance: View ×
