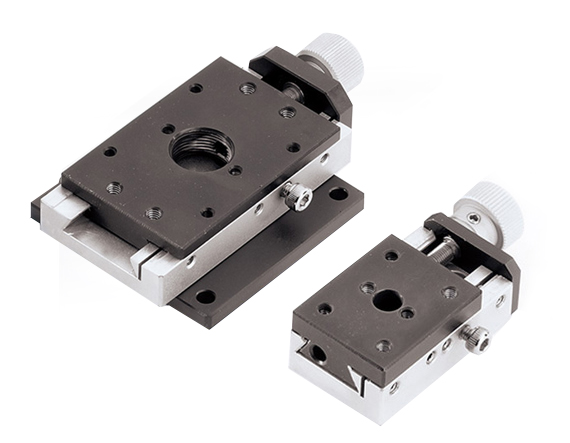

Large X-Axis Leadscrew Drive

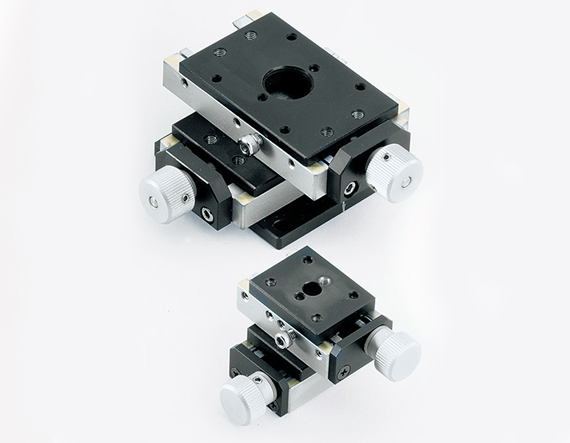

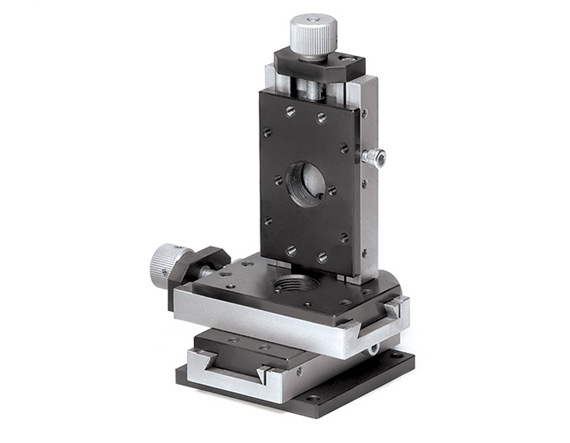

Product Details Locking Knobs for Secure Positioning 0.5mm Travel per Knob Rotation Available with up to 15mm Travel in X and Y with 12mm Travel in Z Leadscrew Drive Stages are ideal for a variety of positioning requirements that require high load capacities. Each stage features a leadscrew drive and locking knobs for securing the stage position. A top plate is available for large models ( #58-290 ) with both M6 and ¼-20 tapped holes to directly accept posts or post holders. Large models feature an aluminum base plate for easy integration. Specifications General Type: Metric Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Dovetail Stage Size (mm): 40 x 60 Travel (mm): 15 (±7.5) Center Hole: M16 x 1 Construction: Brass Leadscrew Pitch (mm): 0.5 Load Capacity (kg): 7.5 Weight (kg): 0.38 Hardware & Interface Connectivity Type of Drive: Lead Screw Threading & Mounting Mounting Threads: (1) M16 x 1, (4) M4 x 0.7, (6) M3 x 0.5 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
