Lightpath 7100410 | 4mm FL, f/1.2, Thermal Imaging Lens Assembly

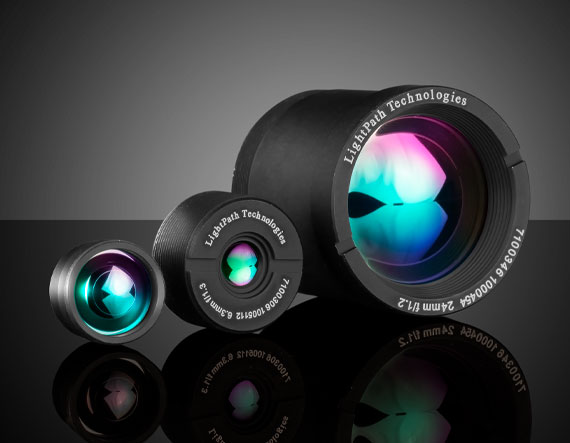

Product Details Precision Molded Chalcogenide Lenses Compact Designs for Thermal Imaging Cameras Focal Lengths from 2.7 to 24mm Lightpath Thermal Imaging Assemblies are a cost-effective alternative to diamond turned infrared lenses for applications in the mid-wave infrared (MWIR) or long-wave infrared (LWIR). These lenses are molded from BD6, a chalcogenide glass that offers high transmission from 1 to 15µm and is also optically athermalized from -40 to +85°C. These lenses feature a broadband antireflection coating from 8 to 12µm and are mounted in compact black anodized aluminum housings that are threaded to allow for adjustable focus. Lightpath Thermal Imaging Assemblies are ideal for medical diagnostics, gas sensing, thermography, thermal imaging, security, and manufacturing process control applications. Lenses with focal lengths from 2.7 to 24mm are available, covering detector sizes from 80 x 80 to 640 x 480 pixels. Specifications General Compatible Window: Thickness: 0.70mm Material: Si Lightpath Lens Code: 7100410 Physical & Mechanical Properties Front Diameter (mm): 9.93 Length (mm): 6.50 Clear Aperture CA (mm): 3.50 Construction: Matte Black Anodized Aluminum Housing Optical Properties Effective Focal Length EFL (mm): 4.00 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Black Diamond BD-6 f/#: 1.2 Index of Refraction (n d ) @ 4μm: 2.7978 Index of Refraction (n d ) @ 10μm: 2.7816 Index of Refraction (n d ) @ 14μm: 2.7683 Coating: BBAR (8000-12000nm) Coating Specification: R avg <0.75% @ 8000 - 12,000nm Wavelength Range (nm): 8000 - 12000 Working Distance (mm): 5.33 Sensor Recommended Detector Format (H x V/Pixel Size): 320 x 240 / 12μm Threading & Mounting Mounting Threads: M10 x 0.5 Thread Length (mm): 6.50 Material Properties Coefficient of Thermal Expansion CTE (10 -6 /°C): 22.5 Thermo-optic coefficient dn/dT: 30.5 x 10 -6 @ 10μm Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
