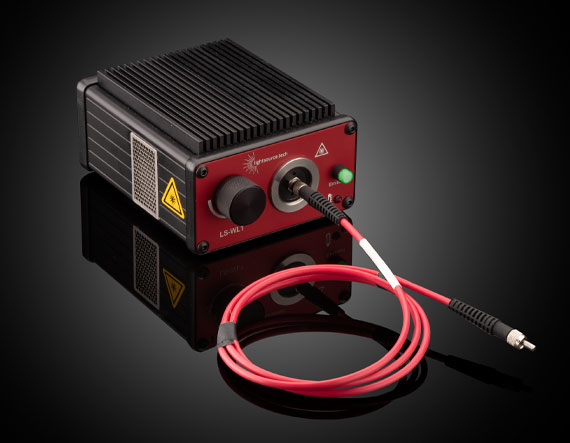

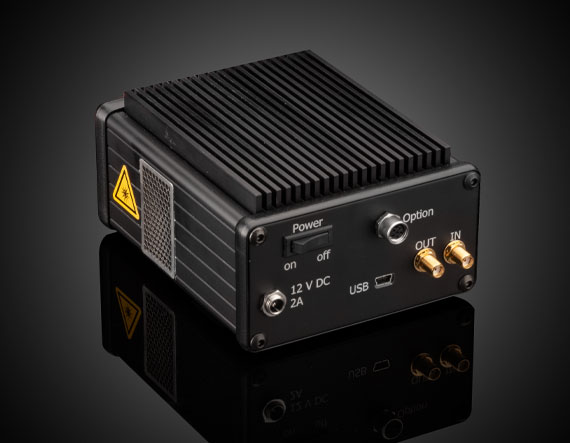

LS-WL1 Laser Driven White Light Source Kit

Product Details Extremely High Luminance with Output Power up to 500mW Light Coupling with 50µm – 1mm Core Diameter Multimode Fibers User-Friendly GUI for Remote Control via USB or RS-232 450 – 700nm Wavelength Range Fiber Coupled Laser-Driven White Light Source utilizes a 450nm laser pumped stable ceramic phosphor converter to produce a highly efficient and extremely bright light source with output power up to 500mW from a 1mm fiber. Featuring a broad 450 – 700nm spectral output, this light source can achieve switching frequencies up to 200kHz to act as a high-frequency stroboscope. The switching frequency and duty cycle can be controlled either via the jog-wheel or through the user-friendly software interface. Fiber Coupled Laser-Driven White Light Source’s highly efficient optical coupling is suitable for use with multimode fibers of 50µm to 1mm and an NA up to 0.50. The high-power white light is up to 100X higher luminance than white LEDs, has a 10,000 hour lifetime through highly efficient cooling, and features simple control via USB or RS-232. This light source is ideal for biomedical and imaging applications including excitation for fluorescence or chemical surface processing, high speed spectroscopy, and high-resolution microscopy. Note: Software, power supply, USB cable, and 1mm core fiber are included. Specifications General Model Number: LS-WL1 Intensity Control Option: 1 – 100% Lamp Lifetime (hours): >10,000 Note: Software, power supply, USB cable, and 1mm core fiber are included. Operating Modes: Constant output: CW Stroboscope: Frequency 0.12 Hz–200 kHz Duty cycle 0–100% Pulse trigger: Pulse width: 10μs–4000ms Delay: 4μ,s–4000ms (Width + Delay <= 4000ms) Direct mode: Analog/digital modulation to 100 kHz Note: All modes allow output setting of 1–100% Physical & Mechanical Properties Dimensions (mm): 125 x 110 x 60 Weight (kg): 0.45 Optical Properties Wavelength Range (nm): 440 - 750 Electrical Output Power (mW): 500mW from 1mm fiber (0.5NA) Voltage (V): 12 Power Consumption (W): 20 @ 100% Power Hardware & Interface Connectivity Connector: SMA Computer Interface: RS232 via USB Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
