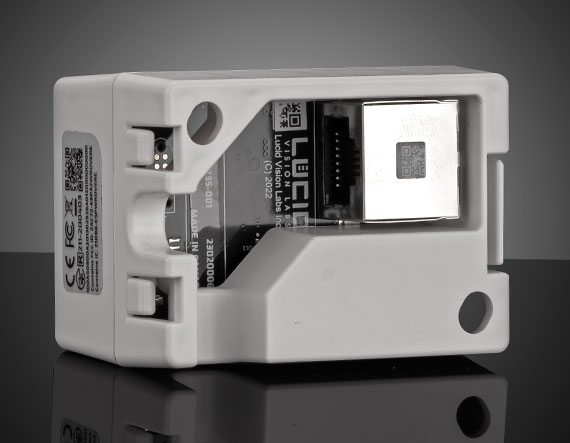

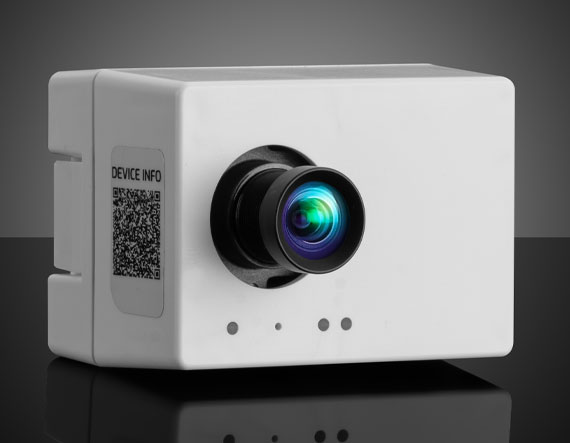

LUCID Vision Labs SENSAiZ SZP123S-001, Sony IMX500, 12.33MP, Color Camera

Product Details 12.33 Megapixel Sony IMX500 Intelligent Vision CMOS Sensor Power Over Ethernet (PoE) for Easy Integration Compact 55 x 40 x 35 mm Form Factor Sony AITRIOS Software is Required for Use LUCID Vision Labs SENSAiZ Intelligent Vision CMOS Camera integrates Sony’s IMX500 sensor and AITRIOS software platform to migrate image processing and AI image analysis directly to the camera without the need for external processing or memory. Sony’s IMX500 CMOS sensor is designed with a stacked pixel chip and logic chip to place AI capabilities directly on the sensor, greatly reducing processing time and increasing security. This intelligent vision sensor shifts many of the standard image processing steps from a cloud-based system onto the camera itself, capturing the information and meaning of an image and allowing for only the necessary data to be output. This provides lower latency, offline image processing, increased security, reduced power requirements, and lower cost. Sony’s AITROS software platform provides an all-in-one place for device management, AI development, and system and cloud integration. LUCID Vision Labs SENSAiZ Intelligent Vision CMOS Camera features a built-in camera lens, lightweight and compact housing, and Ethernet PoE connection for simple system integration. This camera is ideal for a wide range of applications from security and manufacturing to automation and robotics. NOTE: SENSAiZ cameras can only be used with Sony’s AITRIOS software platform. AITRIOS software can be purchased directly through Sony. See the Technical Images tab for mounting instructions. Specifications Spectrum: Color General Type: Color Camera Model Number: SZP123S-001 Manufacturer: Lucid Vision Labs Camera Series: SENSAiZ Physical & Mechanical Properties Dimensions (mm): 55 x 40 x 35 (excludes lens protrusion) Weight (g): 48 Housing: Full Optical Properties Focal Length FL (mm): 4.35 Sensor Sensor Format: 1/2.3″ Resolution (Megapixels): 12.33 Pixels (H x V): 4,056 x 3,040 Pixel Size, H x V (μm): 1.55 x 1.55 Imaging Sensor: Sony IMX500 Type of Sensor: Progressive Scan CMOS Shutter Type: Rolling Electrical Power Consumption (W): 3 (PoE+) Hardware & Interface Connectivity Connector: 100BASE-T RJ45 Power Supply: Power over Ethernet (PoE+) Environmental & Durability Factors Operating Temperature (°C): -10 to +55 Storage Temperature (°C): -30 to +60 Regulatory Compliance Certificate of Conformance: View ×
