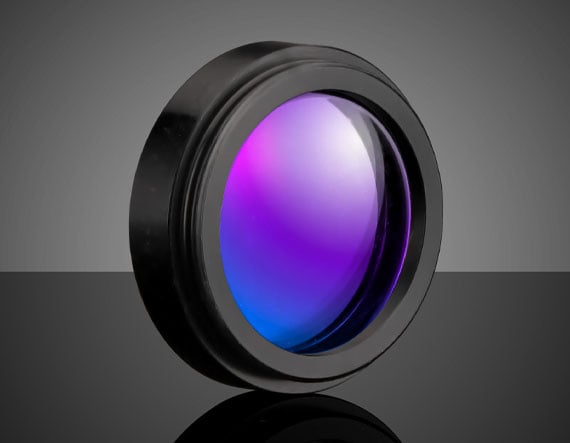

M40.5 x 0.50, 1.5mm Thick, Uncoated, Machine Vision Mounted Sapphire Window

Product Details Protective Windows for Machine Vision Applications Windows Feature Extreme Surface Hardness and Chemical Resistance M25.5 to M62.0 Filter Threads Available Machine Vision Mounted Sapphire Windows are mounted in durable anodized aluminum housings with common filter threads for easy integration with most imaging lenses. The windows within the mount are manufactured from durable sapphire making them ideal for rugged environments because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Machine Vision Mounted Sapphire Windows feature both male and female threads, allowing them to be combined with other mounted filters or polarizers. The uncoated windows are useful within a transmission range from 330 – 5500nm making them ideal for machine vision applications in the UV, Visible, and Infrared spectra. Specifications General Type: Protective Window Physical & Mechanical Properties Clear Aperture CA (mm): 34.2 Diameter (mm): 38.00 +0/-0.20 Thickness (mm): 1.50 ±0.10 Parallelism (arcmin): ≤3.5 Bevel: Protective as needed Clear Aperture (%): ≥90 Edges: Fine Ground Poisson’s Ratio: 0.27 Young’s Modulus (GPa): 435 Knoop Hardness (kg/mm 2 ): 1,900.00 Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Sapphire (Al 2 O 3 ) Index of Refraction (n d ): 1.77 Surface Quality: 80-50 Abbe Number (v d ): 72.24 Birefringence (n o -n e ): 0.008 for Visible Light Orthogonal to Optical Axis Axis Orientation: Random Wavelength Range (nm): 330 – 5500 Surface Flatness (P-V): 2λ (typical) Threading & Mounting Filter Thread: M40.5 x 0.50 Mount Diameter (mm): 42.00 Mount Thickness (mm): 7.0 Material Properties Density (g/cm 3 ): 3.97 Coefficient of Thermal Expansion CTE (10 -6 /°C): 8.8 Regulatory Compliance Certificate of Conformance: View ×
