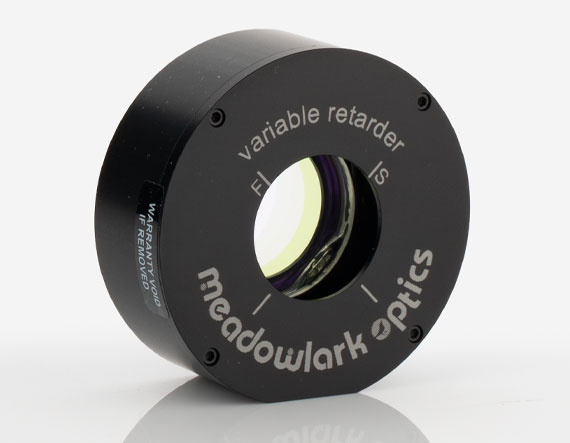

Meadowlark Optics LC Variable Retarder, Uncompensated, 2” Dia 900-1250nm

Product Details Enable Precision Electrical Control of Polarization Multiple Options for UV to NIR wavelengths Compatible with Meadowlark Optics Liquid Crystal Controllers Meadowlark Optics Liquid Crystal Variable Retarders enable precise electrical control of polarization through variation of effective birefringence with applied voltage. This alters the input polarized light to any chosen elliptical, linear, or circular polarization. These retarders are constructed using a birefringent nematic liquid crystal material between optically flat fused silica windows coated with transparent conductive Indium Tin Oxide (ITO) for maximum transmission within a specified wavelength range. Meadowlark Optics Liquid Crystal Variable Retarders are ideal for active polarization control in metrology and medical applications such as stress analysis, pharmaceutical ingredient analysis, and biological microscopy. For uncompensated retarders, there will be a residual retardance of around 30nm at high voltage. Note: These variable retarders should be electrically driven with an AC waveform with no DC component to prevent ionic buildup which can damage the liquid crystal layer. For control, a 2 kHz square wave of adjustable amplitude is required. The Meadowlark Liquid Crystal Analog and Digital Controllers ensure the drive requirements are met and are recommended for use. Meadowlark Optics Liquid Crystal Variable Retarders enable the precision electrical control of polarization through the variation of effective birefringence with applied voltage, altering the input polarized light to any chosen elliptical, linear, or circular polarization. As voltage is increased, retardance is decreased. For uncompensated retarders, there will be a residual retardance of around 30nm at high voltage. These retarders are constructed using a birefringent nematic liquid crystal material between optically flat fused silica windows coated with transparent conductive Indium Tin Oxide (ITO) for maximum transmission within a specified wavelength range. Each Meadowlark Optics Liquid Crystal Variable Retarder is supplied with retardance vs voltage performance data for the specified wavelength range, and a coaxial cable with mating connector is provided for easy attachment to one to Meadowlark Optics Liquid Crystal Controllers. These variable retarders should be electrically driven with an AC waveform with no DC component to prevent ionic buildup which can damage the liquid crystal layer. For control, a 2 kHz square wave of adjustable amplitude is required. Specifications General Type: Liquid Crystal Variable Retarder, Uncompensated Note: Item supplied with retardance vs voltage performance data. Coaxial cable with mating connector is provided. Controller ( #72-848 or #72-849 ) required for operation. Physical & Mechanical Properties Clear Aperture CA (mm): 17.8 Diameter (mm): 50.80 ±0.13 Thickness (mm): 19.05 ±0.13 Optical Properties Coating: AR-Coat Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Optical Quality synthetic fused silica Reflection (%): ≤ 0.5% per surface at 0°deg AOI Surface Quality: 40-20 Beam Deviation (arcmin): ≤ 2 Transmitted Wavefront Distortion (RMS): ≤ λ/4 @ 632.8nm Wavelength Range (nm): 900 – 1250 Damage Threshold, Reference: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 500 W/cm 2 , CW 300 mJ/cm 2 , 10 ns, visible Retardance Range: ~30nm to λ/2 Threading & Mounting Mount: Anodized Aluminium Material Properties Retarder Material: Nematic Liquid Crystal Environmental & Durability Factors Operating Temperature (°C): 0 to 50 Regulatory Compliance Certificate of Conformance: View ×
