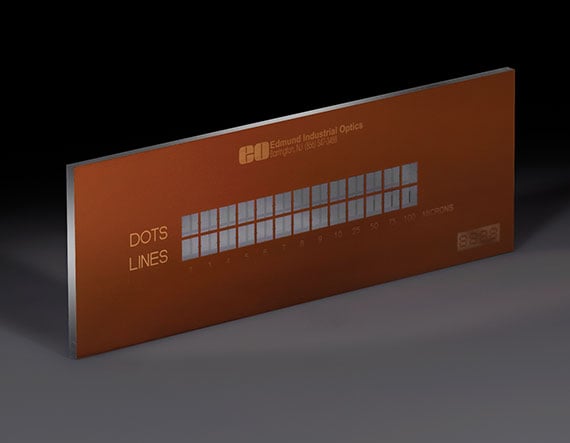

Micro Line and Dot Standard Stage Micrometer

Product Details New Opal Version Available Calibrate Pixel Dithering Lines and Dot Range from 2μm to 100μm The Micro Line and Dot Standard is designed to calibrate imaging devices performing critical measurements. The pattern features known dot and line sizes of 2μm, 3μm, 4μm, 5μm, 6μm, 7μm, 8μm, 9μm, 10μm, 25μm, 50μm, 75μm, 100μm. Calibrating with this target can limit the effects of pixel dithering in image processing algorithms. Target is chrome on glass or chrome on opal. Specifications General NIST Certification: No Physical & Mechanical Properties Scale Divisions: 2μm, 3μm, 4μm, 5μm, 6μm, 7μm, 8μm, 9μm, 10μm, 25μm, 50μm, 75μm, 100μm Dimensions (mm): 25.4 x 76.2 Thickness (mm): 1.50 ±0.100 Dimensional Tolerance (mm): ±0.100 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Chrome on Glass Surface Quality: 60-40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
