Multi-Element Tube System Kit

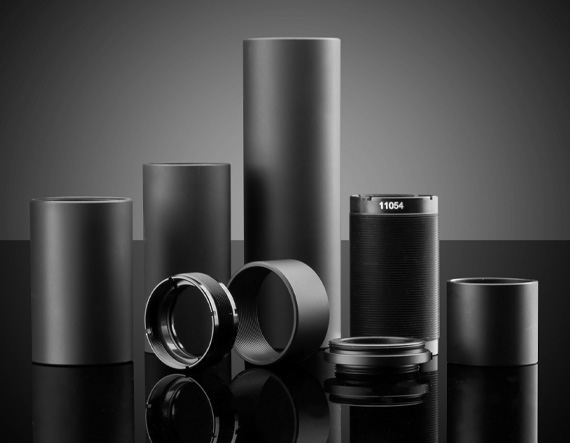

Product Details Create Basic Optical Systems Ideal for OEM, Experimentation, or Prototyping Includes Mounting Options for 12mm, 12.5mm, and 25mm Diameter Optics Click Here to See How to Use the Multi-Element Tube System Components to Build an Optical System. The TECHSPEC Multi-Element Tube System Kit provides an introductory platform for researchers, engineers, or educators to create optical assemblies for OEM, experimentation, or prototyping purposes. This kit contains an assortment of essential Multi-Element Tube System components, including single and pair optic mounts, outer tubes, spacer rings and tubes, aperture rings, and various accessories needed to construct a basic optical system. The TECHSPEC Multi-Element Tube System Kit includes optic mounts for common optical diameters of 12mm, 12.5mm, and 25mm. The included C-Mount thread adapters allow for compatibility between the systems created with this kit and a broad range of applications. Specifications General Function: Kit Contents of Kit: #37-900 Outer Tube, 15mm Length, Qty 2 #37-901 Outer Tube, 30mm Length, Qty 2 #37-902 Outer Tube, 50mm Length, Qty 2 #37-903 Outer Tube, 80mm Length, Qty 1 #37-904 Outer Tube, 100mm Length, Qty 1 #38-749 Inner Single Optic Mount, 12mm, Qty 2 #38-750 Inner Single Optic Mount, 12.5mm, Qty 2 #38-755 Inner Single Optic Mount, 25mm, Thin, Qty 2 #38-758 Inner Single Optic Mount, 25mm, Thick, Qty 2 #11-054 Inner Pair Optic Mount, 25mm x 2 pcs., Thick, Qty 1 #11-193 Inner Spacer Ring Kit, Qty 1 #11-194 Inner Spacer Tube, 1mm, Qty 2 #11-195 Inner Spacer Tube, 3mm, Qty 1 #11-196 Inner Spacer Tube, 5mm, Qty 1 #11-197 Inner Spacer Tube, 10mm, Qty 1 #11-198 Inner Spacer Tube, 25mm, Qty 1 #11-199 Inner Spacer Tube, 40mm, Qty 1 #11-207 Inner Spacer Tube, 60mm, Qty 1 #11-187 ME Inner Aperture Plate Kit, Qty 1 #11-179 ME Outer Tube Joining Ring, Qty 1 #37-774 Multi-Element Retaining Ring Set, Qty 1 #11-178 ME C-Mount Male Converter, Qty 1 #11-177 ME C-Mount Female Converter, Qty 1 #11-046 ME Tube Spanner Wrench, Qty 1 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
