Multi-Grid Standard Stage Micrometer

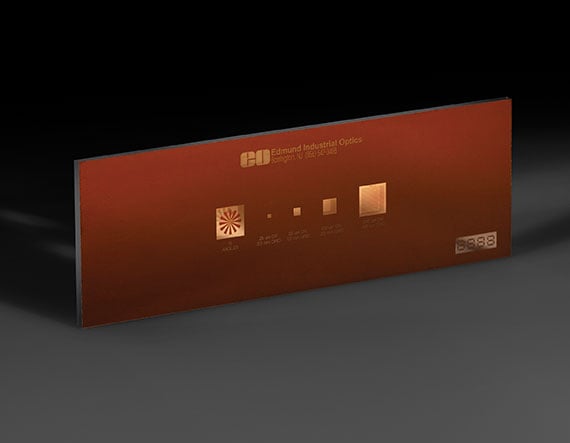

Product Details Calibrate Distortion in High Magnification Systems The Multi-Grid Stage Micrometer features grids of varying frequency, and is ideal for calibrating distortion in microscopic systems. Grid sizes are 0.5mm (25μm divisions), 1.0mm (50μm divisions), 2.0mm (100μm divisions) and 4.0mm (200μm divisions). Micrometer also features an angle grid (15° segments). Target is chrome on glass, 1″ x 3″ x 1.5mm. Specifications General NIST Certification: No Physical & Mechanical Properties Scale Divisions: 0.5mm (25μm divisions), 1.0mm (50μm divisions), 2.0mm (100μm divisions), 4.0mm (200μm divisions), angle grid (15° segments) Dimensions (mm): 25.4 x 76.2 Thickness (mm): 1.50 ±0.100 Dimensional Tolerance (mm): ±0.100 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Chrome on Glass Surface Quality: 60-40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
