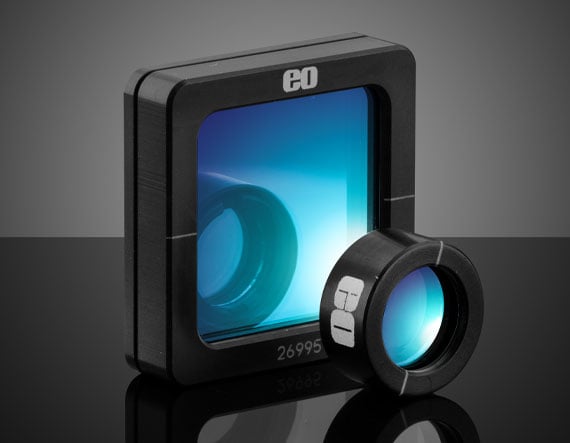

NIR Wire Grid Polarizer, HT, 700nm-2500nm, 25mm x 25mm

Product Details Designed for 700 – 2500nm High Transmission and High Contrast Versions Available Ideal for Thermal Imaging NIR Wire Grid Polarizers are broadband polarizers designed to provide high transmission from 700 – 2500nm. These polarizers are optimized as either a high contrast version, providing 5900:1 extinction ratio at 2400nm, or as a high transmission version providing up to 91% transmission at 1900nm. NIR Wire Grid Polarizers are manufactured on high-grade display glass, providing excellent heat resistance for NIR applications. When incident light strikes the wire grid, P-polarized light contacts a dielectric and is transmitted, while S-polarized light contacts a mirror and is reflected. Specifications General Type: Linear Polarizer Physical & Mechanical Properties Clear Aperture CA (mm): 19 x 19 Dimensions (mm): 25 x 25 ±0.2 Thickness (mm): 5.80 ±0.2 (with mount) Construction: Wire Grid Optical Properties Angle of Incidence (°): 0° ±20° Coating: Uncoated Extinction Ratio: 150:1@900nm 500:1@1400nm 800:1@1900nm 1000:1@2400nm Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Wire Grid on Display Grade Glass Surface Quality: 80-50 Transmission (%): >88.1@900nm >91.0@1400nm >91.3@1900nm >90.3@2400nm Wavelength Range (nm): 700 – 2500 Threading & Mounting Mount: Mounted 6061 Anodized Aluminium Material Properties Thermal Expansion: 31.7 x 10-7/˚C (0 – 300˚C) Regulatory Compliance Certificate of Conformance: View ×
