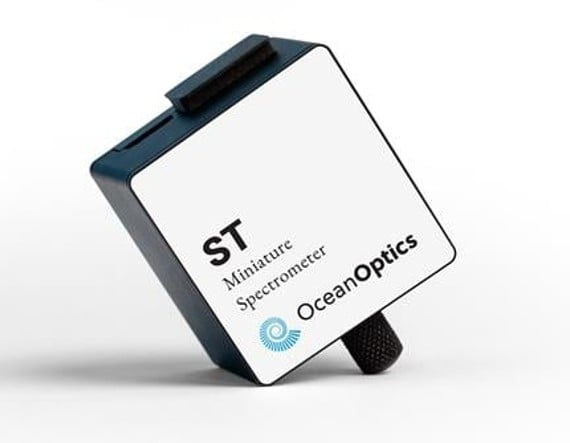

Ocean Optics ST UV Microspectrometer

Product Details Compact Spectrometers for Small Space Solutions and Easy Integration Experience Fast, Reliable Results with Solutions Designed for Rapid Testing UV, VIS, and NIR Models Available Ocean Optics ST Microspectrometers offer high-performance spectral analysis in a compact, lightweight design—perfect for space-constrained setups and OEM device integration. These miniature spectrometers feature excellent spectral response, high-speed acquisition, and high signal-to-noise ratio. Models are available for the UV, VIS, and NIR ranges and support real-time measurements in applications such as plasma monitoring, DNA absorbance, fluorescence detection, and color quality control. The Ocean Optics ST Microspectrometers include the user-friendly OceanView software system to optimize spectrometer performance, ease system integration, and access data for analysis. Specifications General Software: OceanDirect & OceanView Integration Time: 3.8 ms – 6 s Model Number: ST-UV-25 Note: Includes manual QR code, software QR code, calibration reports for wavelength and linearity, 1 m USB cable Input Port Termination: SMA 905 Grating: Ruled Diffraction Grating: 600 Grooves/mm, Blazed @ 250nm Optical Bench: Cross Czerny Turner Title: Ocean Optics ST UV Microspectrometer Physical & Mechanical Properties Slit Width (μm): 25 Weight (kg): 0.0704 Dimensions (mm): 42.1 x 40.3 x 26.6 Optical Properties Spectral Resolution (nm): 2.2 Wavelength Range (nm): 185 – 650 Sensor Type of Sensor: CCD Electrical Signal to Noise S/N Ratio: Single Scan @ 10 ms: 190:1 Max per second with High Speed Averaging Mode: 2250:1 Hardware & Interface Connectivity Computer Interface: USB, RS-232 Threading & Mounting Mounting Threads: (2) M2 x 0.4 Environmental & Durability Factors Operating Temperature (°C): 0 to +55 Storage Temperature (°C): -30 to +70 Thermal Drift: 0.05 Pixel/°C Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
