Olympus 10X WLI Objective

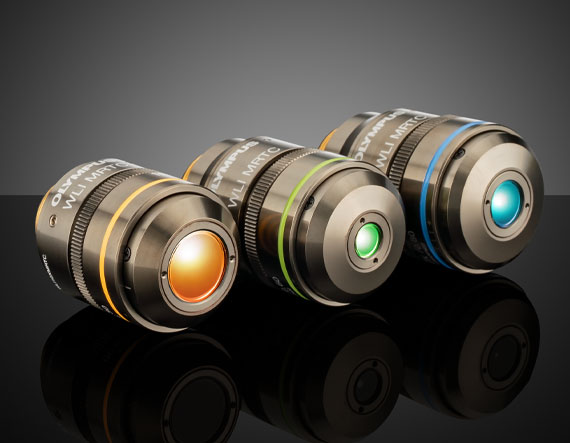

Product Details Combines High Numerical Aperture and Broad Field of View Thermal Compensation & Stability Features Suitable for 3D Surface Metrology and Profilometry Olympus WLI Infinity Corrected Interferometry Objectives’ advanced optical design combines a high numerical aperture with a broad field of view, capturing fine surface details across large areas for visual clarity. Each objective features a built-in adjustment ring that compensates for temperature-induced focused shifts, allowing stability and consistent measurement accuracy even under unstable environmental conditions. These objectives are designed to be used with a 180mm focal length tube lens and are available in magnification of 10 – 50X. Olympus WLI Infinity Corrected Interferometry Objectives are ideal for 3D surface metrology and profilometry applications, including semiconductor inspection, precision machining, optical coating evaluation, and microelectronic characterization. Specifications General Model Number: WLI10XMRTC Compatible Tube Lens Focal Length (mm): Focal Length: 180mm Type: Microscope Objective Style: Infinity Corrected Manufacturer: Olympus Note: Designed to be used with a 180mm Tube Lens, Sold Separately Physical & Mechanical Properties Field of View (mm): 2.2 Length excluding Threads (mm): 36.80 Maximum Diameter (mm): 29.7 Optical Properties Focal Length FL (mm): 18.00 Magnification: 10X Numerical Aperture NA: 0.30 Resolving Power (μm): 1.12 Depth of Field (μm): 3.06 Working Distance (mm): 8.2 Field Number (mm): 22 Parfocal Length (mm): 45 Depth of Focus (μm): 305.6 Entrance Pupil Diameter (mm): 10.80 Threading & Mounting Mounting Threads: RMS / 20.32mm x 36 TPI Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View ×
