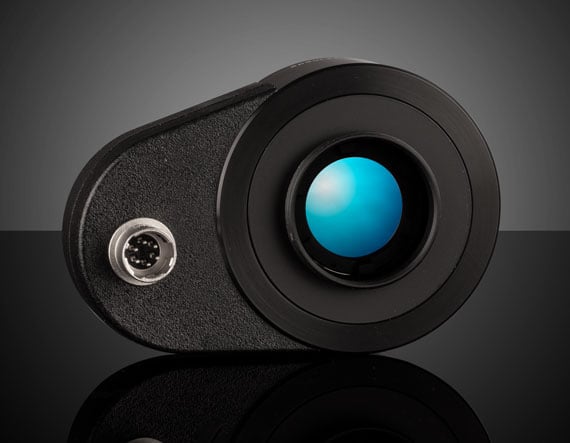

Optotune -2 to +3 diopter, NIR Temperature Compensation, C-Mount EL-16-40-TC-NIR-5D-1-C

Product Details Multiple Imaging Lens Mounting Options Large Clear Aperture Ideal for Machine Vision Applications Industrial Hirose Connection with Temperature Sensing Integrated Temperature Control for Improved Thermal Effects Optotune Focus Tunable Lenses 10mm Clear Aperture Hirose Connector and Lens Drivers Also Available Optotune Focus Tunable Lenses 16mm Clear Aperture Hirose Connector eliminate the need for optomechanical subsystems otherwise required to alter the focal length of your imaging application. They feature large clear apertures and are offered in many popular machine vision mounting options, making them ideal for inspection and detection systems. These lenses offer continuous focusability from -2 to +3 diopters controlled by an industrial Hirose connection. Optotune Focus Tunable Lenses 16mm Clear Aperture Hirose Connector exhibit no autofluorescence, reducing unwanted light on the detector and feature integrated temperature sensing to provide open loop reproducibility typically within 0.1 diopters. The lenses are made of low dispersion polymer and feature a broadband anti-reflection coating. Note: Hirose cables, available in 1m length ( #88-941 ), 3m length ( #33-468 ) or 5m length ( #23-852 ), and Lens Driver ( #88-940 ) are required and sold separately. The Gardasoft TR-CL180 Industrial Lens Controller ( #13-803 ) is an optional accessory that provides repeatable, precision control of Optotune Industrial Focus-Tunable Lenses. Prescription data is available to model the effect an offset lens has on overall focal range. Specifications General Type: Specialty Lens Model Number: EL-16-40-TC-NIR-5D-1-C Driver: #88-940 Lifecycles: 1,000,000,000 Response Time (ms): 5 (typical @ 30°C) Settling Time (ms): 25 (typical @ 30°C) Physical & Mechanical Properties Dimensions (mm): 47.0 x 70.0 Thickness (mm): 17.60 Clear Aperture CA (mm): 16.00 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Low Dispersion Polymer Abbe Number (v d ): 100.00 Index of Refraction (n d ): 1.3 Coating: BBAR (850-1500nm) Wavelength Range (nm): 850 – 1500 Focus Range (mm): -2 to +3 diopter -500 to +333mm Transmitted Wavefront Error, RMS: Vertical: 0.15λ @ 525nm Horizontal: 0.50λ @ 525nm Electrical Current (mA): -250 to 250 Power Consumption (W): 0 – 0.7 Threading & Mounting Mounting Threads: C-Mount (Male) C-Mount (Female) Environmental & Durability Factors Operating Temperature (°C): -20 to +65 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 251: Compliant ×
