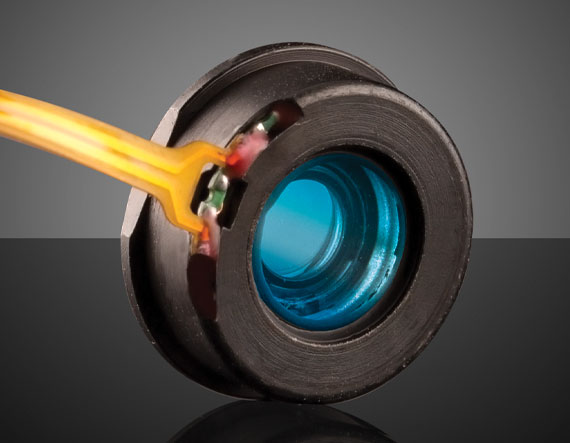

Optotune 3mm Clear Aperture, VIS Coated, Electrically Focus Tunable Lens | EL-3-10-VIS-26D-FPC

Product Details Continuous Focusability Compact Size Wide Focal Adjustment Range Optotune Focus Tunable Lenses 3mm Clear Aperture FPC Connector are easily integrated into a variety of Machine Vision applications including inspection, sorting, and bar code reading. By applying a current, the Optotune Focus Tunable Lenses 3mm Clear Aperture FPC Connector are able to quickly change shape from concave to convex, and provides an adjustment of -13 to +13 diopters (-77 to +77mm). With a small form factor of 10mm diameter x 4mm thick, low power consumption, and fast settling time, these lenses are the ideal option for OEM integration. Specifications General Type: Specialty Lens Model Number: EL-3-10-VIS-26D-FPC Lifecycles: >1,000,000,000 Settling Time (ms): <5 (80% step response) Physical & Mechanical Properties Outer Diameter (mm): 10.0 Thickness (mm): 4.00 Clear Aperture CA (mm): 3 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Low Dispersion Polymer Abbe Number (v d ): 100 Index of Refraction (n d ): 1.300 Coating: BBAR (420-900nm) Wavelength Range (nm): 420 - 900 Focus Range (mm): -13 to +13 diopter -77 to +77mm Transmitted Wavefront Error, RMS: 0.2λ @ 525nm Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 3W/cm 2 @ 1064nm Electrical Current (mA): -120 to +120 Power Consumption (W): 0 - 0.12 Regulatory Compliance Certificate of Conformance: View ×
