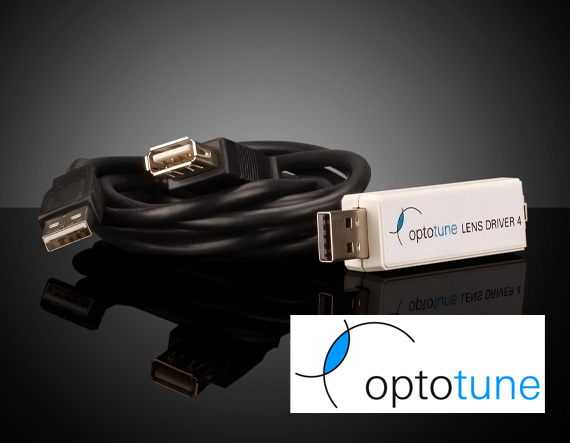

Optotune Electrical Lens Driver 4 | EL-E-4

Product Details Designed to Control Optotune Focus-Tunable Lenses Control Range of -250 to +250mA with 12-bit Precision Driver Software Available for Download Optotune Lens Driver 4 and 4i are simple-to-use tools for controlling Optotune Focus Tunable Lenses. The Optotune Industrial Electrical Lens Driver 4i ( #88-940 ) is designed specifically for Optotune Focus Tunable Lenses with Hirose Connector. The Optotune Electrical Lens Driver 4 ( #87-590 ) is compatible with the Optotune Focus Tunable Lenses with FPC Connector. Optotune Lens Driver 4 and 4i are USB powered and offer 12C sensor read-out for temperature compensation, in addition to rectangular, triangular, or sinusoidal drive frequencies from 0.2 – 1000Hz. These drivers also include an onboard 8-bit, 16MHz microcontroller with 32KB flash memory and are ideal for standalone use or for OEM integration. Specifications General Type: Specialty Lens Physical & Mechanical Properties Height (mm): 13.00 Length (mm): 77.00 Width (mm): 19.00 Electrical Maximum Output Update Frequency (kHz): >100 Operating Current (mA): -250 to +250 Power Consumption (W): 0.05 – 1.1 Hardware & Interface Connectivity Connector: USB Type A (to PC), 0.5mm pitch 6-way FPC (to lens) Environmental & Durability Factors Operating Temperature (°C): -20 to +65 Storage Temperature (°C): -40 to +85 Regulatory Compliance Reach 174: Compliant × Certificate of Conformance: View ×
