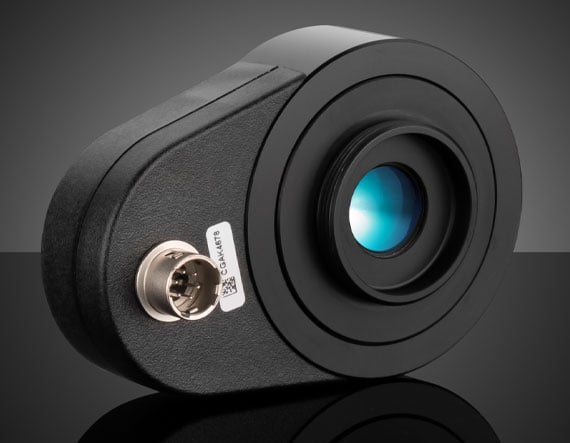

Optotune Electrically Focus Tunable lens 12mm CA, VIS coated, C mount | EL-12-30-TC-VIS-16D-C

Product Details Fast Rise and Settling Times of 3ms & 10ms Low Temperature Sensitivity <0.01dpt/°C Low Power Consumption of 55mW for a 5 Diopter Range Optotune Focus Tunable Lenses 12mm Clear Aperture Hirose Connector combine our Optotune Electrically Focus Tunable Lenses with C-Mount compatible housings to ease mechanical integration into imaging systems. This lens features a versatile focal power range of -6 to +10 diopters with exceptional precision in a slim housing that adds only 5.8mm to the optical axis. Optimized for fast response times and low thermal sensitivity, the liquid lens can switch from a flat zero-state into a plano-concave or plano-convex lens in 3ms and remain stable with a <0.01dpt/°C sensitivity. Optotune Focus Tunable Lenses 12mm Clear Aperture Hirose Connector are ideal for replacing multi-lens or zoom systems in machine vision, microscopy, and optical coherent tomography (OCT) applications. The protective cover glass is AR coated to maximize transmission from 420 – 950nm. Specifications General Type: Specialty Lens Model Number: EL-12-30-TC-VIS-16D-C Lifecycles: >1,000,000,000 Response Time (ms): 3 Physical & Mechanical Properties Outer Diameter (mm): 47.0 Thickness (mm): 5.80 Clear Aperture CA (mm): 11.6 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Low Dispersion Polymer Abbe Number (v d ): 100.00 Index of Refraction (n d ): 1.450 Coating: BBAR (420-950nm) Wavelength Range (nm): 420 – 950 Focus Range (mm): -6 to +10 diopter Transmitted Wavefront Error, RMS: Vertical: 0.15λ @ 525nm Horizontal: 0.25λ @ 525nm Electrical Current (mA): -250 to 250, -300 to 300 abs. max Power Consumption (W): 0.94 Regulatory Compliance Certificate of Conformance: View ×
