Optotune Industrial 4 Channel Current Controller | ICC-4C-500

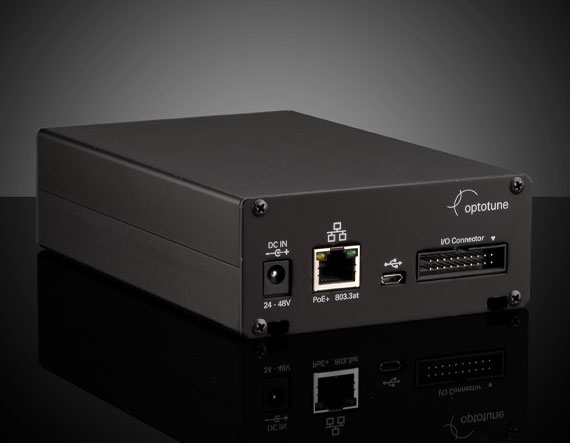

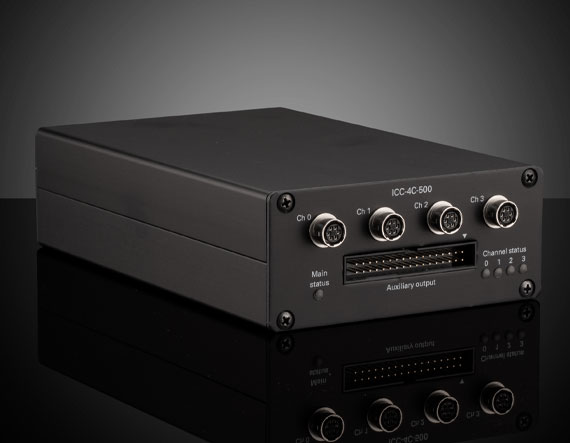

Product Details ICC-1C for Control of a Single Optotune Lens ICC-4C-500 Controls Up to 4 Optotune Lenses Simultaneously ICC-4C-2000 Controls Optotune Beam Shifters and Fine Steering Mirrors Driven via Optotune Cockpit GUI, SDK, or Analog Signal Optotune Lens Drivers and Gardasoft Controllers Also Available Optotune ICC Current Controllers allow for control of Optotune Focus Tunable Lenses delivering ±500mA of current (up to 4 lenses can be controlled with ICC-4C-500 ), or of Optotune’s Beam Shifters and Fine Steering Mirrors ( ICC-4C-2000 ). The controller features a variety of interfaces to facilitate easy communication with existing machine vision systems, including USB, UART, I­2C, Ethernet, and analog input. The Optotune Cockpit GUI is used to easily drive the controller over USB or ethernet with Python and C# SDKs available for further user integration. Optotune ICC Current Controllers are ideal for machine vision applications and for using multiple liquid lenses to simplify control and wiring. These controllers also offer the ability to control LEDs, laser diodes, thermo-electric coolers (TECs), or other devices requiring accurate current control. The extension kit #22-409 is required for driving Optotune Focus Tunable Lenses with FPC connectors using the ICC-1C or ICC-4C-500 , and the extension kit #23-718 is required for driving Beam Shifters and Fine Steering Mirrors with the ICC-4C-2000 . Specifications General Type: Lens Accessory Physical & Mechanical Properties Height (mm): 44 Length (mm): 164.00 Width (mm): 105.00 Electrical Operating Current (mA): -500 to +500 Power Consumption (W): 25 (maximum) Hardware & Interface Connectivity Connector: Micro USB, Ethernet (to PC), 6-way Hirose (to lens) Environmental & Durability Factors Operating Temperature (°C): 0 to +60 Storage Temperature (°C): -40 to +85 Regulatory Compliance Certificate of Conformance: View ×
