Piezo Focus Module for M12 Lenses

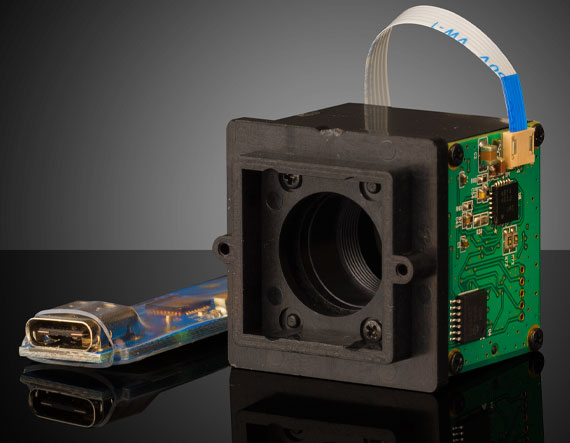

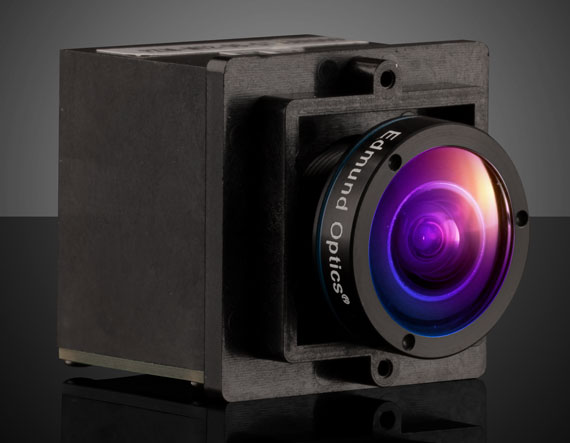

Product Details Enables Wide Focus Range for M12 Lenses Compact 26 x 26 x 25mm Housing 6mm Travel in Z-Axis Piezo Focus Module for M12 Lenses utilize Tiny Ultrasonic Linear Actuators (TULA’s) for low noise, high linearity, sub-micrometer resolution, backlash free motion. Integrated between the camera and lens, the 6mm stroke enables a wide focus range for most M12 (S-Mount) lenses . Featuring an embedded controller, power and data communication (UART or I2C) interface via 5-pin flat cable or micro USB connection (USB cable included). Piezo Focus Module for M12 Lenses are ideal for lightweight OEM systems and systems in special environments such as strong EMI fields. These modules feature a standard mounting socket with a 22mm hole spacing and can be mounted to board level cameras using M1.4 x 3.5mm screws. Note: Custom sockets may be required to integrate with board level cameras. Specifications General Note: M12 Lens Weight: <16g Physical & Mechanical Properties Type of Movement: Linear (Bi-directional) Travel (mm): 6 Dimensions (mm): 26x26x25 Load Capacity (g): <5 Repeatability (mrad): ±0.003 Resolution (μrad): 1 Speed (mm/s): <10 Hardware & Interface Connectivity Type of Drive: Piezo Ultrasonic Linear Motor Power Supply: Included USB A-C Adapter Environmental & Durability Factors Operating Temperature (°C): 0 to 50 Regulatory Compliance Certificate of Conformance: View ×
