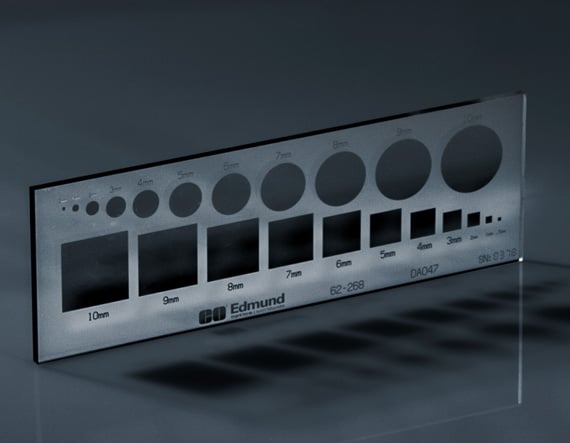

Positive 1″ x 3″, Dot and Square Calibration Target

Product Details Designed for Measurement Calibration Positive or Negative Chrome Patterns on Glass High Contrast Target for Imaging with Elements from 0.5 to 10mm NIST Traceability Certificate Included These targets provide a highly accurate reference for feature sizes of circles and squares and are ideal for testing the accuracy of non-contact metrology systems, especially those vulnerable to distortion and blooming. The precision pattern is formed in Low Reflection Chromium on a stable Float Glass substrate in standard microscope slide format. The low reflection pattern surface provides high contrast against a light background, ideal for diffuse or coaxial illumination applications. The pattern is applied to the first surface and features both circles and squares in 0.5mm and whole-number-sized increments from 1mm to 10mm. The Positive Target features an opaque pattern on a clear background, whereas the Negative Target features a clear pattern on an opaque background. Specifications General Type: Positive Target NIST Certification: Included Physical & Mechanical Properties Dimensional Tolerance (inches): ±0.02 Pattern Size (mm): 0.5 to 10 Dimensions (inches): 1 x 3 Thickness (inches): 0.060 Thickness Tolerance (inches): ±0.001 Parallelism (inches): 0.005 Pattern Tolerance (μm): ±2.5 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Float Glass Surface Quality: 20-10 Surface Flatness (P-V): <4λ Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
