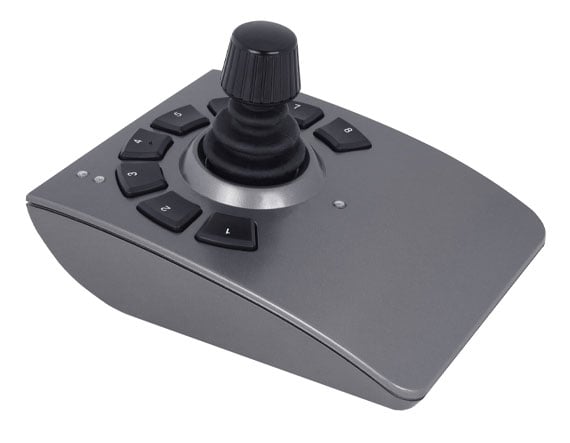

Programmable 3-Axis Joystick Controller

Product Details Can Control Up to 3 Independent Axes Intuitive Interface with Computer-Driven or Manual Operation Fully Programmable Buttons, Velocity Profile, and Sensitivity Power Supply and Data Cable Sold as Separate Accessories The Zaber Programmable Joystick Controller can be connected in series to up to three independent Zaber motors. In standalone operation, the Zaber Programmable Joystick Cotroller is ideal for simple, two to three axis movement, and is aided by key switches that are preprogrammed with commands to home, save current position, and go to saved position. All eight key switches are fully programmable to send any arbitrary command to each axis or to trigger the computer to send command sequences. The analog axis settings include programmable velocity, velocity profile, invert, and unit number, and calibration for the limits and deadband. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Manual Control: 3-axis joystick, 8 programmable keys Note: Requires a 24-48 VDC power supply for operation. A data cable ( #15-296 or #15-299 ) can be used to daisy chain multiple stages together to control. Physical & Mechanical Properties Dimensions (mm): 160 x 120 x 96 Weight (kg): 0.52 Electrical Device Interface: Locking 4-pin M8 Maximum Operating Current (mA): 50 Hardware & Interface Connectivity Power Supply: Not included, see the Accessories tab for recommended 24 to 48V Power Supply & Tech Info tab for connector information. Computer Interface: RS-232 Environmental & Durability Factors Operating Temperature (°C): 0 – 50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
