Ring Light 56mm, 0° Divergence

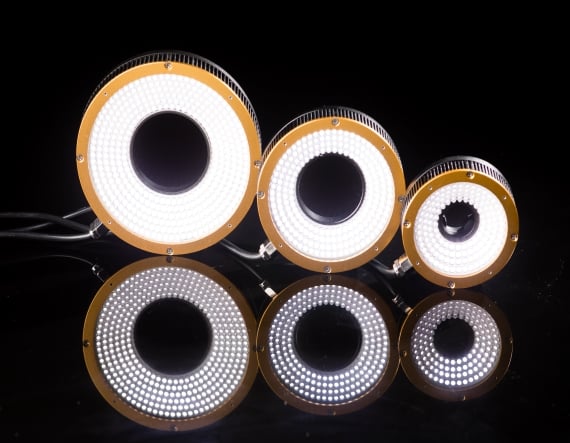

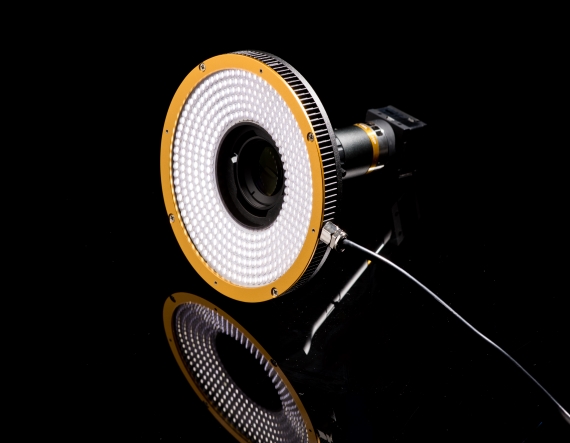

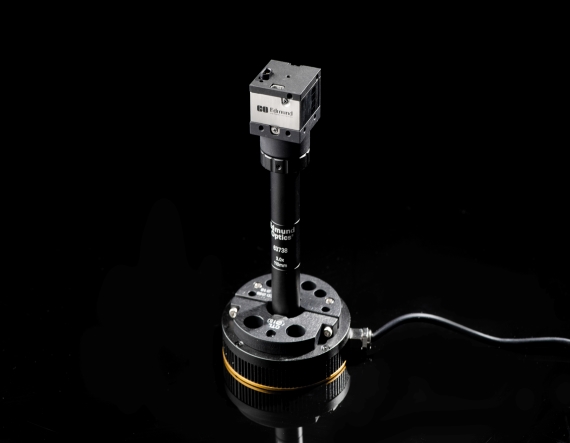

Product Details Designed for use with TECHSPEC CompactTL Telecentric Lenses Built-in Cooling Fins for Consistent, High Intensity Performance Includes Easy to Integrate Polarizer and Diffuser LED Ring Lights for Telecentric Lenses provide high intensity and uniform LED illumination with a divergence angle optimized for telecentric lens working distances. Designed to integrate directly with TECHSPEC CompactTL Telecentric Lenses , these ring lights attach without the need for additional custom mounting. Featuring a sturdy metal casing and built in cooling fans, LED Ring Lights for Telecentric Lenses allow for continuous operation over extended periods of time. A mounting plate, clamp, diffuser, polarizer, and extension cable are all included in purchase of a LED Ring Light for Telecentric Lenses. Note: Power Supply #73-651 is required (sold separately). Specifications General Operating Lifetime (hours): 10000 Number of LEDs: 378 Contents of Kit: Ring light, mounting plate, retrofit clamp for smaller ID mounting options, diffuser, polarizer, extension cable Type of Illumination: LED Illuminator Note: Compatible with EO Lenses: 33-101, 33-115 Manufacturer: Visionlux Technology Geometry: Ring Light Physical & Mechanical Properties Inner Diameter (mm): 56.0 Outer Diameter (mm): 131.8 Weight (g): 545 Optical Properties Color: White Working Distance (mm): 126, 163, 200 Irradiance (W/cm 2 ): 57600, 45000, 32900 Hardware & Interface Connectivity Power Supply: Power Supply Required and Sold Separately: USA: #15-280 and #73-651 Europe: #73-651 Regulatory Compliance Certificate of Conformance: View ×
